Frequency Range:
2.4GHz ~ 2.485GHz, 3.3GHz ~ 3.8GHz, 5.15GHz ~ 5.825GHz, 5.925GHz ~ 7.125GHz
HTSUS:
8517.71.0000
RoHS Status:
ROHS3 Compliant
Frequency Group:
Wide Band
Height (Max):
0.169" (4.30mm)
Applications:
Bluetooth, Wi-Fi, Wi-Fi 6, Wi-Fi 6E, WLAN, ZigBee
Gain:
1.7dBi, 4.21dBi, 4.1dBi, 3.8dBi
Number of Bands:
4
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
802.15.4, Bluetooth, WiFi
Frequency (Center/Band):
2.4425GHz, 3.55GHz, 5.4875GHz, 6.525GHz
Termination:
Solder
standardLeadTime:
9 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount
Antenna Type:
Stamped Metal
Series:
A
Power - Max:
0.5 W
VSWR:
2, 2.2
Return Loss:
-
ECCN:
EAR99

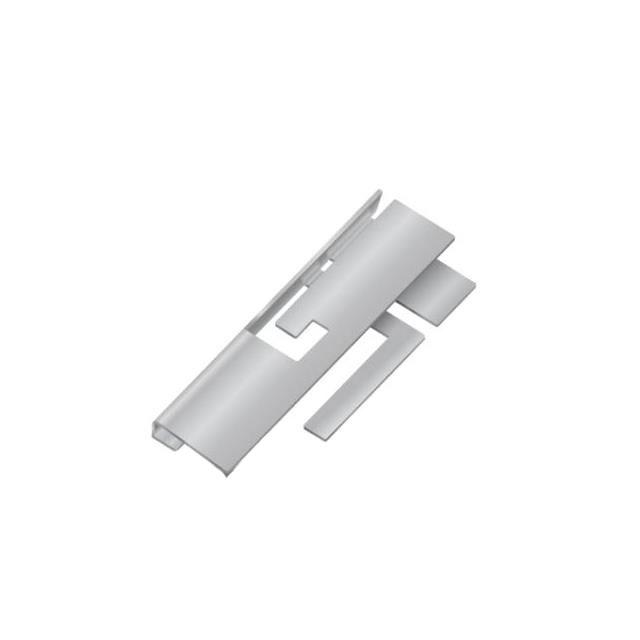

This is manufactured by KYOCERA AVX. The manufacturer part number is A1000146. The frequency range includes 2.4ghz ~ 2.485ghz, 3.3ghz ~ 3.8ghz, 5.15ghz ~ 5.825ghz, 5.925ghz ~ 7.125ghz. It is assigned with possible HTSUS value of 8517.71.0000. The product is rohs3 compliant. The product boasts a wide band frequency group. Additionally, the 0.169" (4.30mm) is the maximum height of the product. The product is widely employed in bluetooth, wi-fi, wi-fi 6, wi-fi 6e, wlan, zigbee. The 1.7dbi, 4.21dbi, 4.1dbi, 3.8dbi is the gain value of a bespoke product. It contains 4 bands. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes 802.15.4, bluetooth, wifi. While it has a frequency of 2.4425ghz, 3.55ghz, 5.4875ghz, 6.525ghz at center/band. The product features solder termination style. It has a long 9 weeks standard lead time. The product is available in surface mount configuration. It is a stamped metal antenna. The product a, is a highly preferred choice for users. The maximum power of the product is 0.5 w. VSWR Information: 2, 2.2. The product is designated with the ear99 code number.
