Frequency Range:
824MHz ~ 7.125GHz
HTSUS:
8517.71.0000
Frequency Group:
Ultra Wide Band
Height (Max):
0.039" (1.00mm)
edacadModel:
NN02-201 Models
Applications:
2G, 3G, 4G, 5G, DCS, GSM, LTE, PCS, UMTS, Wifi DB
Gain:
4.1dBi
edacadModelUrl:
/en/models/11619358
Number of Bands:
1
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
3 (168 Hours)
RF Family/Standard:
Cellular
Frequency (Center/Band):
700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2GHz, 2.1GHz, 2.5GHz, 3.5GHz, 3.7GHz, 4.7GHz, 5GHz, 6GHz, 7GHz
Termination:
SMA
standardLeadTime:
12 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount
Antenna Type:
Chip
Series:
ONE mXTEND™
VSWR:
3
Return Loss:
-
Base Product Number:
NN02
ECCN:
EAR99

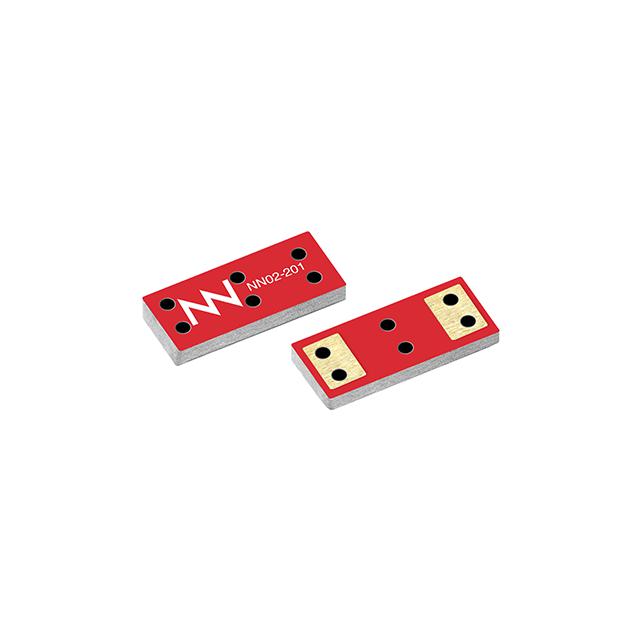

This is manufactured by Ignion. The manufacturer part number is NN02-201. The frequency range includes 824mhz ~ 7.125ghz. It is assigned with possible HTSUS value of 8517.71.0000. The product boasts a ultra wide band frequency group. Additionally, the 0.039" (1.00mm) is the maximum height of the product. The product is widely employed in 2g, 3g, 4g, 5g, dcs, gsm, lte, pcs, umts, wifi db. The 4.1dbi is the gain value of a bespoke product. It contains 1 bands. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 3 (168 hours). The standard RF Family of the product includes cellular. While it has a frequency of 700mhz, 800mhz, 850mhz, 900mhz, 1.7ghz, 1.8ghz, 1.9ghz, 2ghz, 2.1ghz, 2.5ghz, 3.5ghz, 3.7ghz, 4.7ghz, 5ghz, 6ghz, 7ghz at center/band. The product features sma termination style. It has a long 12 weeks standard lead time. The product is available in surface mount configuration. It is a chip antenna. The product one mxtend™, is a highly preferred choice for users. VSWR Information: 3. Moreover, it corresponds to nn02, a base product number of the product. The product is designated with the ear99 code number.
