Frequency Range:
698MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 2.7GHz, 2.3GHz ~ 2.7GHz, 4.9GHz ~ 5.9GHz
HTSUS:
8529.10.9100
RoHS Status:
ROHS3 Compliant
Frequency Group:
Wide Band
Height (Max):
3.425" (87.00mm)
REACH Status:
Vendor Undefined
Applications:
Beidou, GLONASS, GPS, LTE, Wi-Fi
Gain:
4.1dBi, 28dB, 5.9dBi, 6.2dBi, 6.5dBi
Number of Bands:
7
Package:
Bulk
Moisture Sensitivity Level (MSL):
Not Applicable
RF Family/Standard:
Cellular, Navigation, WiFi
Frequency (Center/Band):
829MHz, 1.561GHz, 1.575GHz, 1.602GHz, 2.205GHz, 2.5GHz, 5.4GHz
Termination:
RP-SMA Male, SMA Male (2)
standardLeadTime:
9 Weeks
Ingress Protection:
IP67
Features:
Cable - 5.18m
Mounting Type:
Panel Mount
Antenna Type:
Dome
Series:
-
Power - Max:
50 W
VSWR:
2
Return Loss:
-
Base Product Number:
VHP69273
ECCN:
7A994

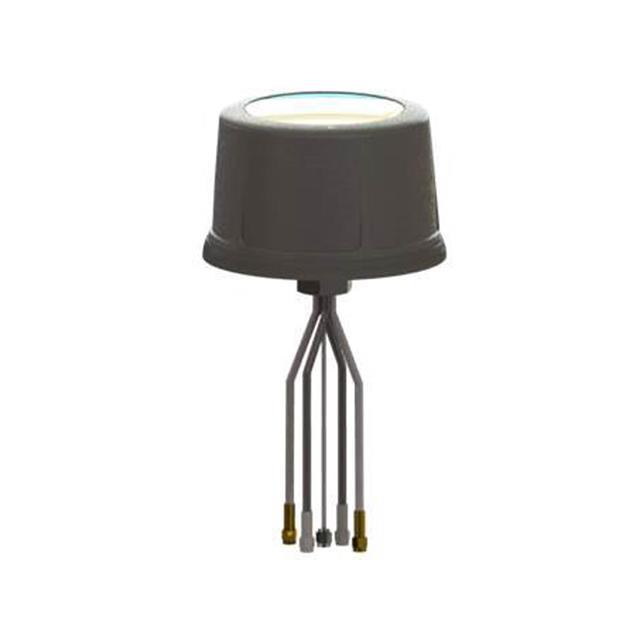

This is manufactured by TE Connectivity Laird. The manufacturer part number is VHP69273B22J-518A. The frequency range includes 698mhz ~ 960mhz, 1.559ghz ~ 1.563ghz, 1.574ghz ~ 1.576ghz, 1.597ghz ~ 1.607ghz, 1.71ghz ~ 2.7ghz, 2.3ghz ~ 2.7ghz, 4.9ghz ~ 5.9ghz. It is assigned with possible HTSUS value of 8529.10.9100. The product is rohs3 compliant. The product boasts a wide band frequency group. Additionally, the 3.425" (87.00mm) is the maximum height of the product. In addition, it is vendor undefined. The product is widely employed in beidou, glonass, gps, lte, wi-fi. The 4.1dbi, 28db, 5.9dbi, 6.2dbi, 6.5dbi is the gain value of a bespoke product. It contains 7 bands. It is shipped in bulk package . Its typical moisture sensitivity level is not applicable. The standard RF Family of the product includes cellular, navigation, wifi. While it has a frequency of 829mhz, 1.561ghz, 1.575ghz, 1.602ghz, 2.205ghz, 2.5ghz, 5.4ghz at center/band. The product features rp-sma male, sma male (2) termination style. It has a long 9 weeks standard lead time. It is IP rated with ip67. The splendid features of the product include cable - 5.18m. The product is available in panel mount configuration. It is a dome antenna. The maximum power of the product is 50 w. VSWR Information: 2. Moreover, it corresponds to vhp69273, a base product number of the product. The product is designated with the 7a994 code number.
