Frequency Range:
698MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.69GHz ~ 4GHz
HTSUS:
8517.71.0000
RoHS Status:
RoHS Compliant
Frequency Group:
Wide Band
Height (Max):
0.300" (7.62mm)
Applications:
AWS, GSM, DCS, LTE, UMTS, WiMax™
Gain:
3.2dBi, 2.6dBi, 3.4dBi, 4.2dBi, 4dBi, 4.4dBi, 4.2dBi, 4.3dBi, 5.4dBi, 2.4dBi, 3dBi
Number of Bands:
11
Package:
Bulk
Moisture Sensitivity Level (MSL):
Not Applicable
RF Family/Standard:
Cellular, WiFi
Frequency (Center/Band):
752MHz, 859MHz, 920MHz, 1.45GHz, 1.785GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.6GHz, 3.55GHz, 3.9GHz
Termination:
4.3/10 - Female
standardLeadTime:
2 Weeks
Ingress Protection:
-
Features:
Cable - 300mm
Mounting Type:
Panel Mount
Antenna Type:
Flat Panel
Series:
-
Power - Max:
50 W
VSWR:
1.5, 1.8, 2
Return Loss:
-
Base Product Number:
CFSA69383
ECCN:
EAR99

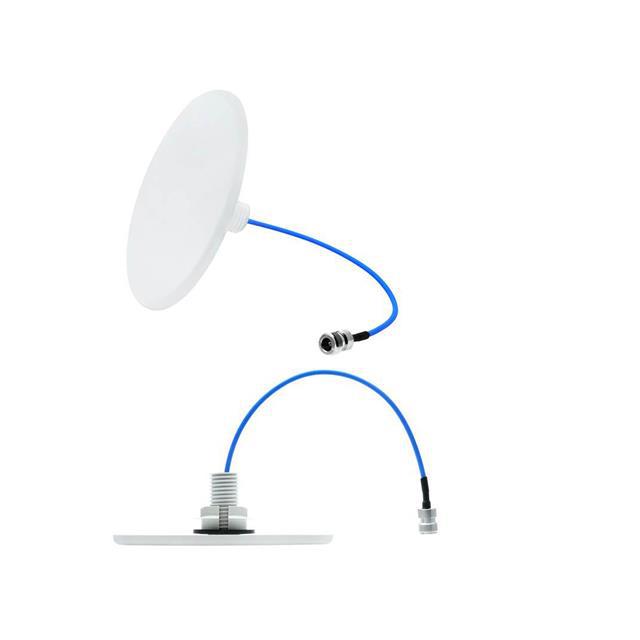

This is manufactured by TE Connectivity Laird. The manufacturer part number is CFSA69383P1-30D43F. The frequency range includes 698mhz ~ 960mhz, 1.35ghz ~ 1.55ghz, 1.69ghz ~ 4ghz. It is assigned with possible HTSUS value of 8517.71.0000. The product is rohs compliant. The product boasts a wide band frequency group. Additionally, the 0.300" (7.62mm) is the maximum height of the product. The product is widely employed in aws, gsm, dcs, lte, umts, wimax™. The 3.2dbi, 2.6dbi, 3.4dbi, 4.2dbi, 4dbi, 4.4dbi, 4.2dbi, 4.3dbi, 5.4dbi, 2.4dbi, 3dbi is the gain value of a bespoke product. It contains 11 bands. It is shipped in bulk package . Its typical moisture sensitivity level is not applicable. The standard RF Family of the product includes cellular, wifi. While it has a frequency of 752mhz, 859mhz, 920mhz, 1.45ghz, 1.785ghz, 1.92ghz, 2.045ghz, 2.4ghz, 2.6ghz, 3.55ghz, 3.9ghz at center/band. The product features 4.3/10 - female termination style. It has a long 2 weeks standard lead time. The splendid features of the product include cable - 300mm. The product is available in panel mount configuration. It is a flat panel antenna. The maximum power of the product is 50 w. VSWR Information: 1.5, 1.8, 2. Moreover, it corresponds to cfsa69383, a base product number of the product. The product is designated with the ear99 code number.
