Frequency Range:
698MHz ~ 960MHz, 1.7 ~ 2.7GHz
HTSUS:
8517.71.0000
RoHS Status:
RoHS Compliant
Frequency Group:
Wide Band
Height (Max):
2.413" (61.30mm)
Applications:
AWS, GSM, LTE, PCS, UMTS
Gain:
7.6dBi, 7.8dBi, 8.8dBi, 8.7dBi, 7.8dBi
Number of Bands:
8
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular
Frequency (Center/Band):
700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 2.6GHz
Termination:
N Type Female
standardLeadTime:
2 Weeks
Ingress Protection:
IP67
Features:
-
Mounting Type:
Bracket Mount
Antenna Type:
Panel
Series:
-
Power - Max:
50 W
VSWR:
1.8, 1.7, 1.7, 1.8, 1.7, 1.9, 1.7, 1.5
Return Loss:
-
Base Product Number:
PAV69278
ECCN:
5A991G

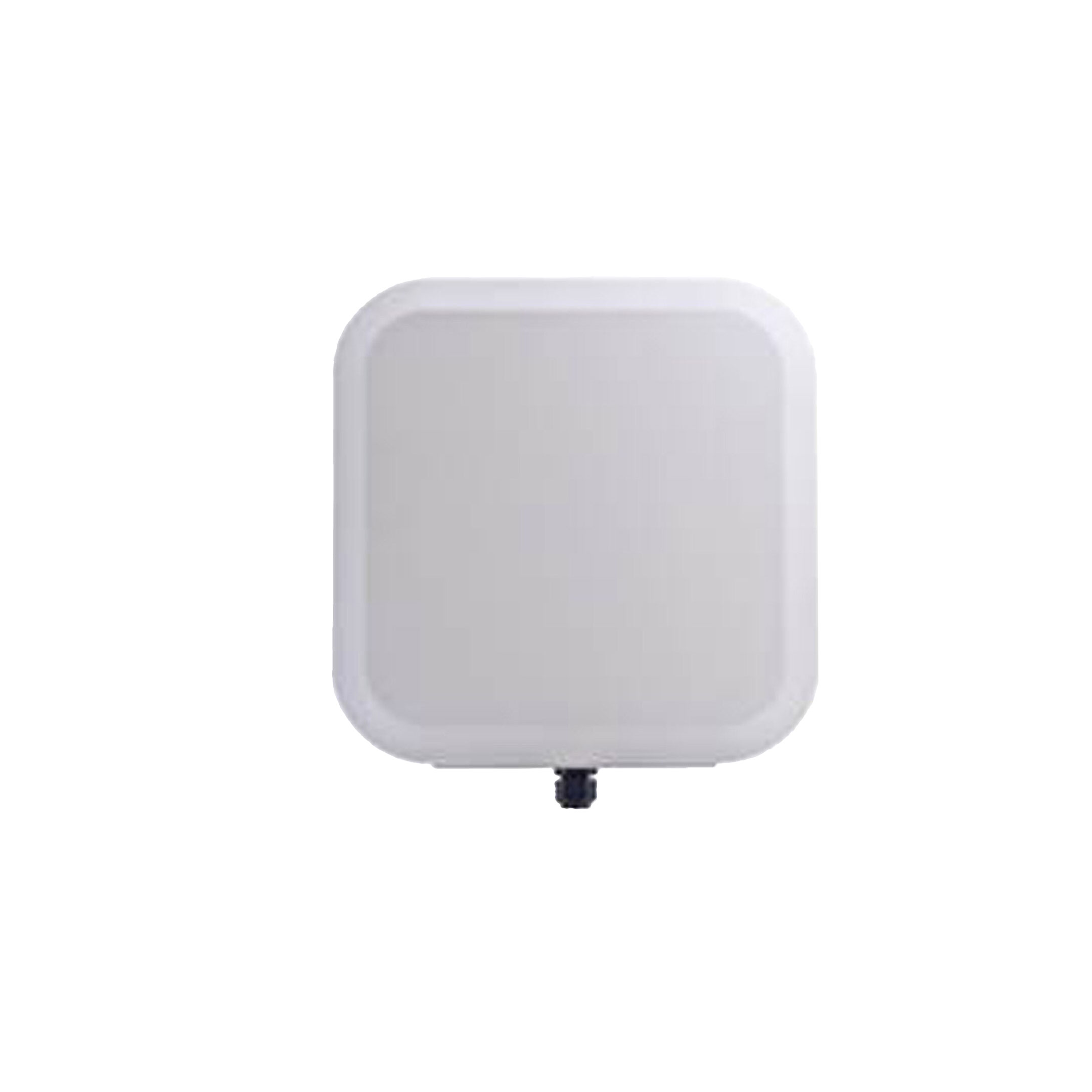

This is manufactured by TE Connectivity Laird. The manufacturer part number is PAV69278PO-FNF. The frequency range includes 698mhz ~ 960mhz, 1.7 ~ 2.7ghz. It is assigned with possible HTSUS value of 8517.71.0000. The product is rohs compliant. The product boasts a wide band frequency group. Additionally, the 2.413" (61.30mm) is the maximum height of the product. The product is widely employed in aws, gsm, lte, pcs, umts. The 7.6dbi, 7.8dbi, 8.8dbi, 8.7dbi, 7.8dbi is the gain value of a bespoke product. It contains 8 bands. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes cellular. While it has a frequency of 700mhz, 850mhz, 900mhz, 1.8ghz, 1.9ghz, 2.1ghz, 2.4ghz, 2.6ghz at center/band. The product features n type female termination style. It has a long 2 weeks standard lead time. It is IP rated with ip67. The product is available in bracket mount configuration. It is a panel antenna. The maximum power of the product is 50 w. VSWR Information: 1.8, 1.7, 1.7, 1.8, 1.7, 1.9, 1.7, 1.5. Moreover, it corresponds to pav69278, a base product number of the product. The product is designated with the 5a991g code number.
