Frequency Range:
815MHz ~ 960MHz, 1.427GHz ~ 1.511GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz
HTSUS:
8517.71.0000
RoHS Status:
RoHS Compliant
Frequency Group:
Wide Band
Height (Max):
6.339" (161.00mm)
Applications:
AWS, GPS, GSM, Wi-Fi, WLAN
Gain:
3dBi
Number of Bands:
7
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular, Navigation, WiFi
Frequency (Center/Band):
850MHz, 900MHz, 1.47GHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz
Termination:
RP-SMA Male
standardLeadTime:
9 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Connector Mount
Antenna Type:
Blade, Tilt
Series:
Heptaband™
Power - Max:
10 W
VSWR:
2.5
Return Loss:
-
ECCN:
5A991G

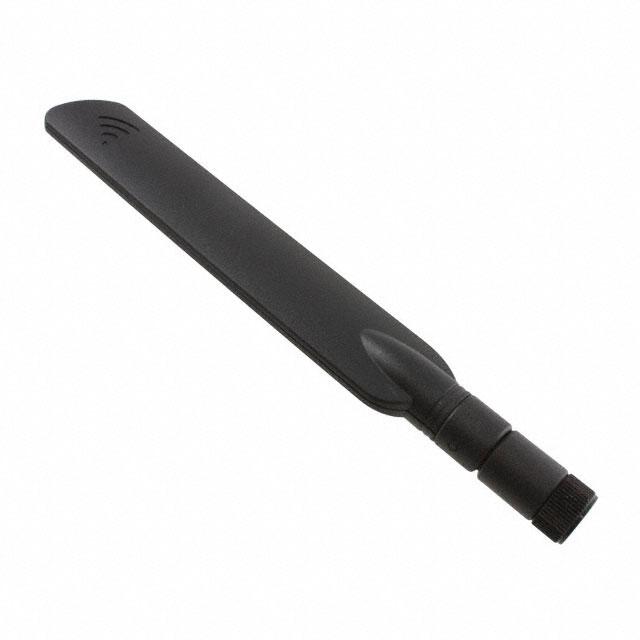

This is manufactured by TE Connectivity Laird. The manufacturer part number is MAF94301. The frequency range includes 815mhz ~ 960mhz, 1.427ghz ~ 1.511ghz, 1.71ghz ~ 2.17ghz, 2.4ghz ~ 2.5ghz. It is assigned with possible HTSUS value of 8517.71.0000. The product is rohs compliant. The product boasts a wide band frequency group. Additionally, the 6.339" (161.00mm) is the maximum height of the product. The product is widely employed in aws, gps, gsm, wi-fi, wlan. The 3dbi is the gain value of a bespoke product. It contains 7 bands. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes cellular, navigation, wifi. While it has a frequency of 850mhz, 900mhz, 1.47ghz, 1.575ghz, 1.8ghz, 1.9ghz, 2.1ghz, 2.4ghz at center/band. The product features rp-sma male termination style. It has a long 9 weeks standard lead time. The product is available in connector mount configuration. It is a blade, tilt antenna. The product heptaband™, is a highly preferred choice for users. The maximum power of the product is 10 w. VSWR Information: 2.5. The product is designated with the 5a991g code number.
