Frequency Range:
617MHz ~ 960MHz, 1.427GHz ~ 1.66GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz
HTSUS:
8529.10.9100
RoHS Status:
ROHS3 Compliant
Frequency Group:
Wide Band
Height (Max):
0.008" (0.20mm)
REACH Status:
REACH Unaffected
Applications:
5G, 4G, 2G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, IMT, LTE, PCS, UMTS, WCDMA
Gain:
3.2dBi, 3.1dBi, 3.7dBi, 4.5dBi
Number of Bands:
7
Package:
Bulk
Moisture Sensitivity Level (MSL):
Not Applicable
RF Family/Standard:
Cellular
Frequency (Center/Band):
657.5MHz, 748MHz, 892MHz, 1.94GHz, 2.35GHz, 2.595GHz, 3.55GHz
Termination:
U.FL (UMCC), IPEX MHFII
Ingress Protection:
-
Features:
-
Mounting Type:
Adhesive
Antenna Type:
PCB Trace
Series:
ANTARES
VSWR:
4.7, 1.52, 1.65, 1.85
Return Loss:
-4dB, -13dB, -12dB, -10dB
ECCN:
EAR99

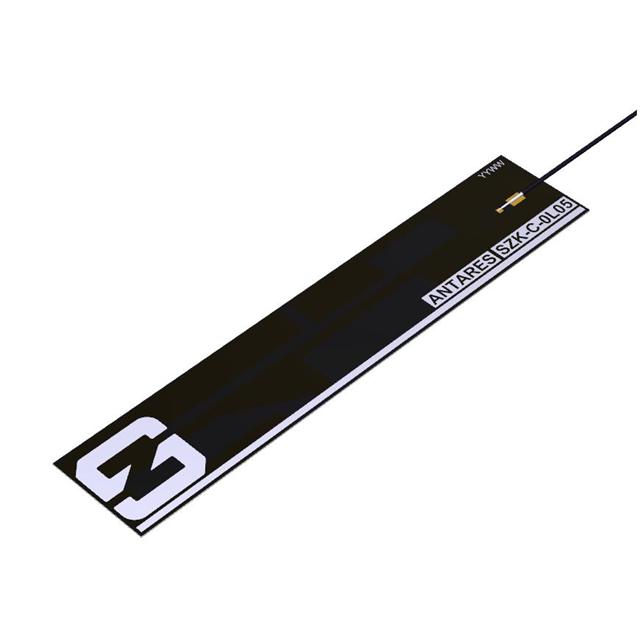

This is manufactured by Synzen. The manufacturer part number is SZK-C-0L05. The frequency range includes 617mhz ~ 960mhz, 1.427ghz ~ 1.66ghz, 1.71ghz ~ 2.2ghz, 2.3ghz ~ 2.4ghz, 2.5ghz ~ 2.69ghz, 3.3ghz ~ 4.2ghz, 4.4ghz ~ 5ghz. It is assigned with possible HTSUS value of 8529.10.9100. The product is rohs3 compliant. The product boasts a wide band frequency group. Additionally, the 0.008" (0.20mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in 5g, 4g, 2g, cdma, dcs, edge, gprs, gsm, hspa, imt, lte, pcs, umts, wcdma. The 3.2dbi, 3.1dbi, 3.7dbi, 4.5dbi is the gain value of a bespoke product. It contains 7 bands. It is shipped in bulk package . Its typical moisture sensitivity level is not applicable. The standard RF Family of the product includes cellular. While it has a frequency of 657.5mhz, 748mhz, 892mhz, 1.94ghz, 2.35ghz, 2.595ghz, 3.55ghz at center/band. The product features u.fl (umcc), ipex mhfii termination style. The product is available in adhesive configuration. It is a pcb trace antenna. The product antares, is a highly preferred choice for users. VSWR Information: 4.7, 1.52, 1.65, 1.85. It has a return loss of -4db, -13db, -12db, -10db. The product is designated with the ear99 code number.
