Frequency Range:
791MHz ~ 928MHz, 1.559GHz ~ 1.61GHz, 1.85GHz ~ 2.62GHz
HTSUS:
8529.10.9100
RoHS Status:
ROHS3 Compliant
Frequency Group:
UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz)
Height (Max):
0.039" (1.00mm)
REACH Status:
REACH Unaffected
Applications:
3G (UMTS), GNSS, IoT, ISM, LP-WAN, RFID
Gain:
1.2dBi, 1.4dBi, 1.1dBi
Number of Bands:
3
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
802.15.4, Bluetooth, Cellular, General ISM, Navigation, WiFi
Frequency (Center/Band):
859.5MHz, 1.5845GHz, 2.24GHz
Termination:
U.FL (UMCC), IPEX MHF1
Ingress Protection:
-
Features:
-
Mounting Type:
Adhesive, Bracket
Antenna Type:
PCB Trace
Series:
AN150201
Power - Max:
10 W
VSWR:
2.32, 3.57, 3.57
Return Loss:
-5dB, -8dB, -5dB
ECCN:
EAR99

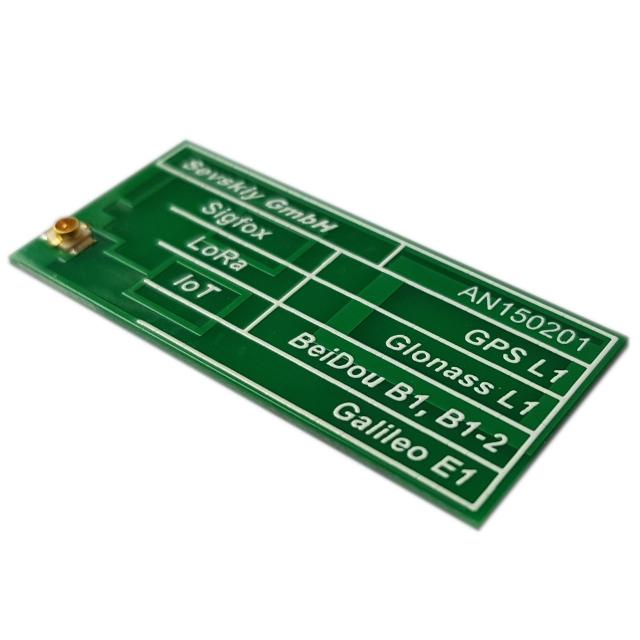

This is manufactured by Sevskiy GmbH. The manufacturer part number is AN150201-01H. The frequency range includes 791mhz ~ 928mhz, 1.559ghz ~ 1.61ghz, 1.85ghz ~ 2.62ghz. It is assigned with possible HTSUS value of 8529.10.9100. The product is rohs3 compliant. The product boasts a uhf (300mhz ~ 1ghz), uhf (1ghz ~ 2ghz), uhf (2ghz ~ 3ghz) frequency group. Additionally, the 0.039" (1.00mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in 3g (umts), gnss, iot, ism, lp-wan, rfid. The 1.2dbi, 1.4dbi, 1.1dbi is the gain value of a bespoke product. It contains 3 bands. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes 802.15.4, bluetooth, cellular, general ism, navigation, wifi. While it has a frequency of 859.5mhz, 1.5845ghz, 2.24ghz at center/band. The product features u.fl (umcc), ipex mhf1 termination style. The product is available in adhesive, bracket configuration. It is a pcb trace antenna. The product an150201, is a highly preferred choice for users. The maximum power of the product is 10 w. VSWR Information: 2.32, 3.57, 3.57. It has a return loss of -5db, -8db, -5db. The product is designated with the ear99 code number.
