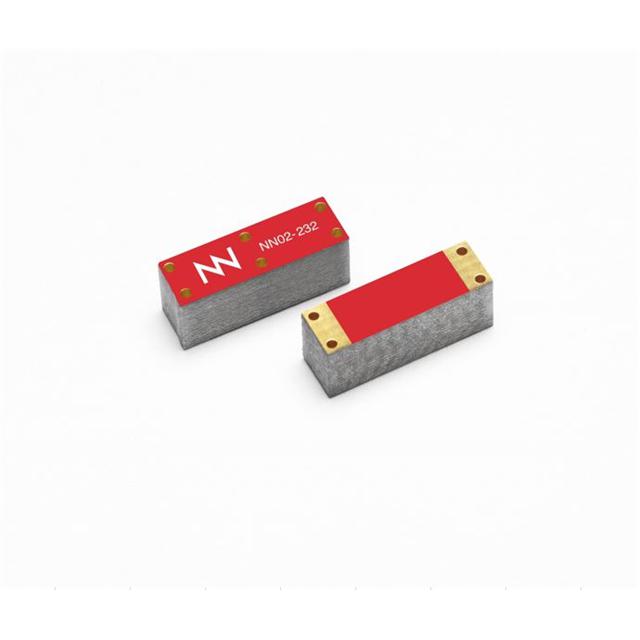

Ignion NN02-232
Product Information
Frequency Range:
824MHz ~ 2.69GHz
HTSUS:
8529.10.9100
RoHS Status:
RoHS Compliant
Frequency Group:
Wide Band
Height (Max):
0.126" (3.20mm)
edacadModel:
NN02-232 Models
Applications:
DCS, GSM, LTE, PCS, UMTS
Gain:
1.3dBi, 0.3dBi, 3.8dBi
edacadModelUrl:
/en/models/10108315
Number of Bands:
12
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
3 (168 Hours)
RF Family/Standard:
Cellular
Frequency (Center/Band):
700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2GHz, 2.1GHz, 2.3GHz, 2.5GHz, 2.6GHz
Termination:
Solder
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount
Antenna Type:
Chip
Series:
BAR mXTEND™
VSWR:
3
Return Loss:
-
Base Product Number:
NN02
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search NN02-232 on website for other similar products.
We accept all major payment methods for all products including ET23147216. Please check your shopping cart at the time of order.
You can order Ignion brand products with NN02-232 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in RF Antennas category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Ignion NN02-232. You can also check on our website or by contacting our customer support team for further order details on Ignion NN02-232.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET23147216 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Ignion" products on our website by using Enrgtech's Unique Manufacturing Part Number ET23147216.
Yes. We ship NN02-232 Internationally to many countries around the world.
This is manufactured by Ignion. The manufacturer part number is NN02-232. The frequency range includes 824mhz ~ 2.69ghz. It is assigned with possible HTSUS value of 8529.10.9100. The product is rohs compliant. The product boasts a wide band frequency group. Additionally, the 0.126" (3.20mm) is the maximum height of the product. The product is widely employed in dcs, gsm, lte, pcs, umts. The 1.3dbi, 0.3dbi, 3.8dbi is the gain value of a bespoke product. It contains 12 bands. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 3 (168 hours). The standard RF Family of the product includes cellular. While it has a frequency of 700mhz, 800mhz, 850mhz, 900mhz, 1.7ghz, 1.8ghz, 1.9ghz, 2ghz, 2.1ghz, 2.3ghz, 2.5ghz, 2.6ghz at center/band. The product features solder termination style. The product is available in surface mount configuration. It is a chip antenna. The product bar mxtend™, is a highly preferred choice for users. VSWR Information: 3. Moreover, it corresponds to nn02, a base product number of the product. The product is designated with the ear99 code number.
