Frequency Range:
617MHz ~ 960MHz, 1.207GHz ~ 1.239GHz, 1.241GHz ~ 1.248GHz, 1.427GHz ~ 1.518GHz, 1.559GHz ~ 1.563GHz, 1.563GHz ~ 1.587GHz, 1.564GHz ~ 1.587GHz, 1.593GHz ~ 1.61GHz, 1.71GHz ~ 2.2GHz, 2.39GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz, 5.925GHz ~ 7.125GHz
HTSUS:
8529.10.9100
RoHS Status:
ROHS3 Compliant
Frequency Group:
Wide Band
Height (Max):
0.807" (20.50mm)
REACH Status:
REACH Unaffected
Applications:
3G, 4G, 5G, Beidou, GLONASS, GPS, GNSS, LTE, Wi-Fi
Gain:
2.1dBi, 4.2dBi, 3.2dBi, 2.2dBi, 0.9dBi, 3.7dBi, 3.7dBi, 0.8dBi, 4dBi, 4.5dBi, 5.4dBi, 6.6dBi
Number of Bands:
13
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular, Navigation, WiFi
Frequency (Center/Band):
788.5MHz, 1.223GHz, 1.2445GHz, 1.4725GHz, 1.561GHz, 1.575GHz, 1.5755GHz, 1.6015GHz, 1.955GHz, 2.54GHz, 4.15GHz, 5.5375GHz, 6.525GHz
Termination:
SMA Male (2)
standardLeadTime:
11 Weeks
Ingress Protection:
IP67
Features:
Cable - 1m, LNA, Filter
Mounting Type:
Adhesive
Antenna Type:
Module
Series:
-
VSWR:
3
Return Loss:
-10dB
ECCN:
7A994

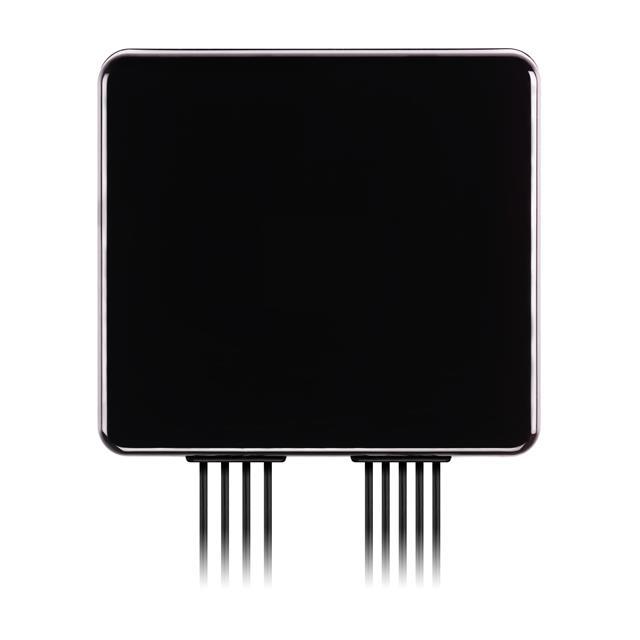

This is manufactured by Taoglas Limited. The manufacturer part number is MA990.A.001. The frequency range includes 617mhz ~ 960mhz, 1.207ghz ~ 1.239ghz, 1.241ghz ~ 1.248ghz, 1.427ghz ~ 1.518ghz, 1.559ghz ~ 1.563ghz, 1.563ghz ~ 1.587ghz, 1.564ghz ~ 1.587ghz, 1.593ghz ~ 1.61ghz, 1.71ghz ~ 2.2ghz, 2.39ghz ~ 2.69ghz, 3.3ghz ~ 5ghz, 5.15ghz ~ 5.925ghz, 5.925ghz ~ 7.125ghz. It is assigned with possible HTSUS value of 8529.10.9100. The product is rohs3 compliant. The product boasts a wide band frequency group. Additionally, the 0.807" (20.50mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in 3g, 4g, 5g, beidou, glonass, gps, gnss, lte, wi-fi. The 2.1dbi, 4.2dbi, 3.2dbi, 2.2dbi, 0.9dbi, 3.7dbi, 3.7dbi, 0.8dbi, 4dbi, 4.5dbi, 5.4dbi, 6.6dbi is the gain value of a bespoke product. It contains 13 bands. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes cellular, navigation, wifi. While it has a frequency of 788.5mhz, 1.223ghz, 1.2445ghz, 1.4725ghz, 1.561ghz, 1.575ghz, 1.5755ghz, 1.6015ghz, 1.955ghz, 2.54ghz, 4.15ghz, 5.5375ghz, 6.525ghz at center/band. The product features sma male (2) termination style. It has a long 11 weeks standard lead time. It is IP rated with ip67. The splendid features of the product include cable - 1m, lna, filter. The product is available in adhesive configuration. It is a module antenna. VSWR Information: 3. It has a return loss of -10db. The product is designated with the 7a994 code number.
