Frequency Range:
617MHz ~ 698MHz, 698MHz ~ 802MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 5.15GHz ~ 5.95GHz
HTSUS:
8517.71.0000
Frequency Group:
Wide Band
Height (Max):
3.465" (88.00mm)
Applications:
2G, 3G, 5G, Cellular, LTE
Gain:
4dBi, 5dBi, 5.5dBi, 6.5dBi, 8.8dBi, 6.8dBi, 10.1dBi
Number of Bands:
7
Package:
Box
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular
Frequency (Center/Band):
657.5MHz, 750MHz, 892MHz, 1.955GHz, 2.495GHz, 3.6GHz, 5.55GHz
Termination:
SMA
standardLeadTime:
11 Weeks
Ingress Protection:
IP67
Features:
Cable - 5.1816m
Mounting Type:
Stud, Through Hole
Antenna Type:
Module
Series:
PCTH
Power - Max:
50 W
VSWR:
1.4, 1.5, 1.6, 1.8, 2.2
Return Loss:
-
ECCN:
5A991G

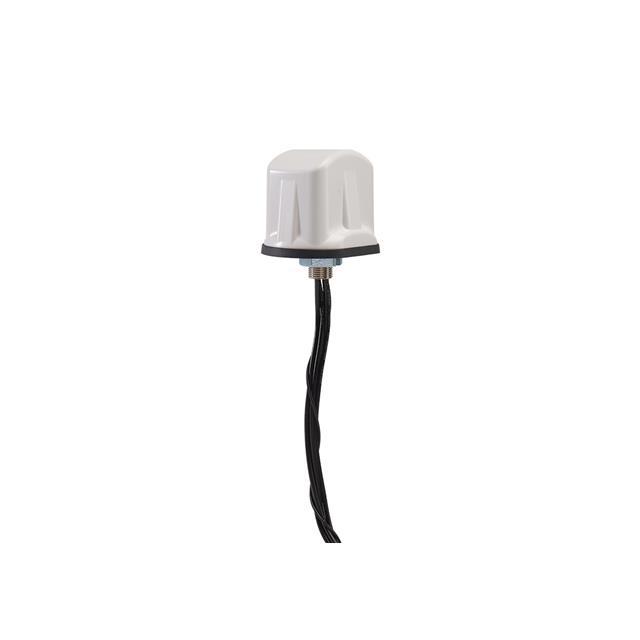

This is manufactured by PCTEL, Inc.. The manufacturer part number is PCTHPDLTE-LTB. The frequency range includes 617mhz ~ 698mhz, 698mhz ~ 802mhz, 824mhz ~ 960mhz, 1.71ghz ~ 2.2ghz, 2.3ghz ~ 2.69ghz, 3.4ghz ~ 3.8ghz, 5.15ghz ~ 5.95ghz. It is assigned with possible HTSUS value of 8517.71.0000. The product boasts a wide band frequency group. Additionally, the 3.465" (88.00mm) is the maximum height of the product. The product is widely employed in 2g, 3g, 5g, cellular, lte. The 4dbi, 5dbi, 5.5dbi, 6.5dbi, 8.8dbi, 6.8dbi, 10.1dbi is the gain value of a bespoke product. It contains 7 bands. It is shipped in box package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes cellular. While it has a frequency of 657.5mhz, 750mhz, 892mhz, 1.955ghz, 2.495ghz, 3.6ghz, 5.55ghz at center/band. The product features sma termination style. It has a long 11 weeks standard lead time. It is IP rated with ip67. The splendid features of the product include cable - 5.1816m. The product is available in stud, through hole configuration. It is a module antenna. The product pcth, is a highly preferred choice for users. The maximum power of the product is 50 w. VSWR Information: 1.4, 1.5, 1.6, 1.8, 2.2. The product is designated with the 5a991g code number.
