Frequency Range:
698MHz ~ 960MHz, 1.598GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz
HTSUS:
8529.10.9100
RoHS Status:
ROHS3 Compliant
Frequency Group:
Wide Band
Height (Max):
0.564" (14.32mm)
REACH Status:
REACH Unaffected
Applications:
2G, 3G, 4G, Galileo, GLONASS, GPS
Gain:
-0.5dBi, 2.5dBi, 0.4dBi, 0.3dBi, 0.9dBi, 0.4dBi, 3dBi, 0.6dBi, 3.2dBi
Number of Bands:
5
Package:
Bag
Moisture Sensitivity Level (MSL):
Not Applicable
RF Family/Standard:
Cellular, Navigation
Frequency (Center/Band):
829MHz, 1.575GHz, 1.602GHz, 1.94GHz, 2.495GHz
Termination:
-
standardLeadTime:
14 Weeks
Ingress Protection:
-
Features:
Cable - 3m, Filter
Mounting Type:
Magnetic
Antenna Type:
Module
Series:
-
Power - Max:
5 W
VSWR:
2, 3
Return Loss:
-6dB, -15dB
ECCN:
7A994

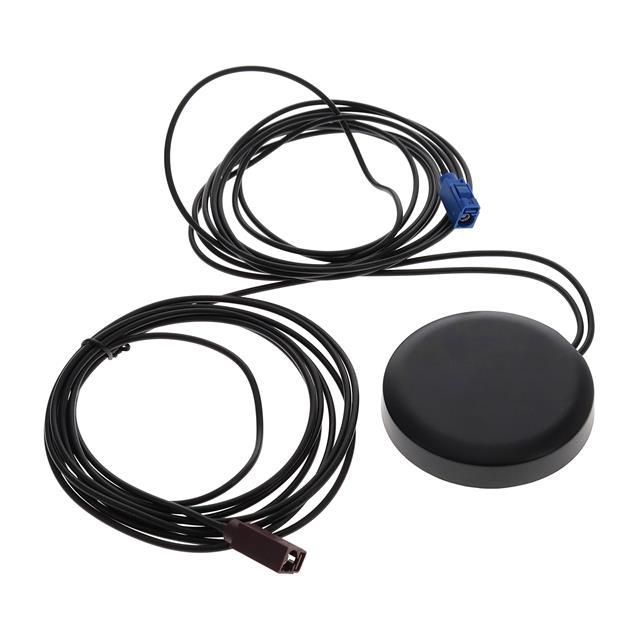

This is manufactured by Adam Tech. The manufacturer part number is ANT-19078EB56. The frequency range includes 698mhz ~ 960mhz, 1.598ghz ~ 1.61ghz, 1.71ghz ~ 2.17ghz, 2.3ghz ~ 2.69ghz. It is assigned with possible HTSUS value of 8529.10.9100. The product is rohs3 compliant. The product boasts a wide band frequency group. Additionally, the 0.564" (14.32mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in 2g, 3g, 4g, galileo, glonass, gps. The -0.5dbi, 2.5dbi, 0.4dbi, 0.3dbi, 0.9dbi, 0.4dbi, 3dbi, 0.6dbi, 3.2dbi is the gain value of a bespoke product. It contains 5 bands. It is shipped in bag package . Its typical moisture sensitivity level is not applicable. The standard RF Family of the product includes cellular, navigation. While it has a frequency of 829mhz, 1.575ghz, 1.602ghz, 1.94ghz, 2.495ghz at center/band. It has a long 14 weeks standard lead time. The splendid features of the product include cable - 3m, filter. The product is available in magnetic configuration. It is a module antenna. The maximum power of the product is 5 w. VSWR Information: 2, 3. It has a return loss of -6db, -15db. The product is designated with the 7a994 code number.
