Frequency Range:
1.215GHz ~ 1.24GHz, 1.243GHz ~ 1.25GHz, 1.559GHz ~ 1.592GHz
HTSUS:
8529.10.4040
Frequency Group:
UHF (1GHz ~ 2GHz)
Height (Max):
0.315" (8.00mm)
Applications:
Beidou, COMPASS, Galileo, GLONASS, GPS
Gain:
-1.9dBi, -0.9dBi, 0.9dBi, 3.1dBi, 4dBi
Number of Bands:
5
Package:
Tray
RF Family/Standard:
Navigation
Frequency (Center/Band):
1.228GHz, 1.246GHz, 1.561GHz, 1.575GHz, 1.601GHz
Termination:
Pin
standardLeadTime:
12 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Solder
Antenna Type:
Ceramic Patch
Series:
GNCP
Power - Max:
8 W
VSWR:
12.1, 4.5, 5, 5, 2.1
Return Loss:
-1.4dB, -4dB, -3.5dB, -3.5dB, -9.1dB
ECCN:
7A994

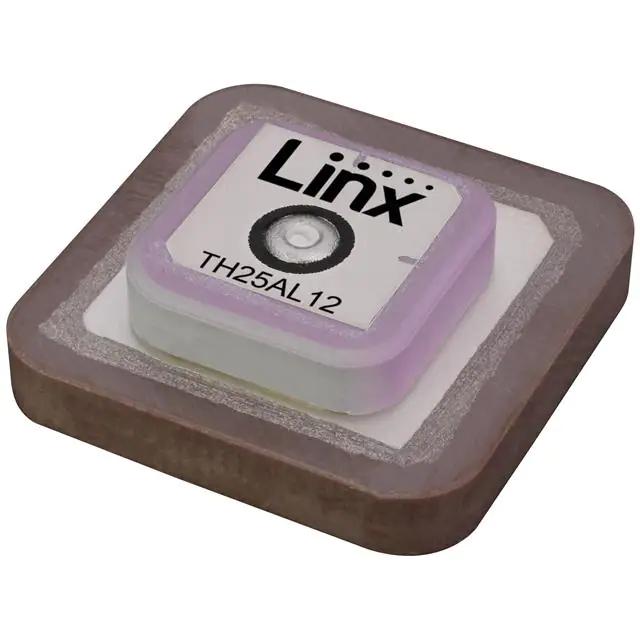

This is manufactured by Linx Technologies Inc.. The manufacturer part number is ANT-GNCP-TH25AL12. The frequency range includes 1.215ghz ~ 1.24ghz, 1.243ghz ~ 1.25ghz, 1.559ghz ~ 1.592ghz. It is assigned with possible HTSUS value of 8529.10.4040. The product boasts a uhf (1ghz ~ 2ghz) frequency group. Additionally, the 0.315" (8.00mm) is the maximum height of the product. The product is widely employed in beidou, compass, galileo, glonass, gps. The -1.9dbi, -0.9dbi, 0.9dbi, 3.1dbi, 4dbi is the gain value of a bespoke product. It contains 5 bands. It is shipped in tray package . The standard RF Family of the product includes navigation. While it has a frequency of 1.228ghz, 1.246ghz, 1.561ghz, 1.575ghz, 1.601ghz at center/band. The product features pin termination style. It has a long 12 weeks standard lead time. The product is available in solder configuration. It is a ceramic patch antenna. The product gncp, is a highly preferred choice for users. The maximum power of the product is 8 w. VSWR Information: 12.1, 4.5, 5, 5, 2.1. It has a return loss of -1.4db, -4db, -3.5db, -3.5db, -9.1db. The product is designated with the 7a994 code number.
