Frequency Range:
1.1GHz ~ 6GHz
HTSUS:
8517.71.0000
Frequency Group:
Wide Band
Height (Max):
0.037" (0.95mm)
Applications:
6G
Gain:
-0.83dBi, 2.8dBi, 2.88dBi, 2.1dBi, 2.3dBi, 3.22dBi, 1.36dBi, 1.49dBi, 1.13dBi
Number of Bands:
9
Package:
Bag
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular
Frequency (Center/Band):
1.1GHz, 1.5GHz, 1.8GHz, 2.16GHz, 2.3GHz, 2.68GHz, 3.3GHz, 5GHz, 6GHz
Termination:
IPEX MHF4
Ingress Protection:
-
Features:
Cable - 193mm
Mounting Type:
Adhesive
Antenna Type:
PCB Trace
Series:
-
VSWR:
2.77, 1.35, 2.42, 1.5, 1.45, 1.38, 1.47, 1.35, 1.08
Return Loss:
-
ECCN:
EAR99

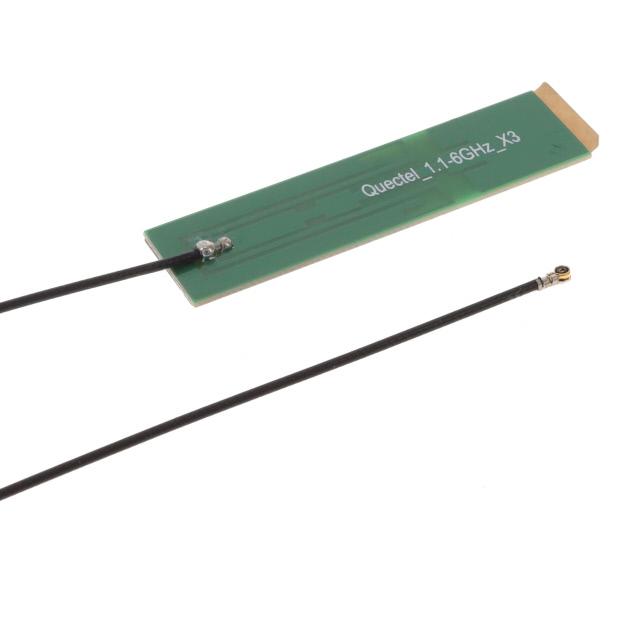

This is manufactured by Quectel. The manufacturer part number is YP0009BA. The frequency range includes 1.1ghz ~ 6ghz. It is assigned with possible HTSUS value of 8517.71.0000. The product boasts a wide band frequency group. Additionally, the 0.037" (0.95mm) is the maximum height of the product. The product is widely employed in 6g. The -0.83dbi, 2.8dbi, 2.88dbi, 2.1dbi, 2.3dbi, 3.22dbi, 1.36dbi, 1.49dbi, 1.13dbi is the gain value of a bespoke product. It contains 9 bands. It is shipped in bag package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes cellular. While it has a frequency of 1.1ghz, 1.5ghz, 1.8ghz, 2.16ghz, 2.3ghz, 2.68ghz, 3.3ghz, 5ghz, 6ghz at center/band. The product features ipex mhf4 termination style. The splendid features of the product include cable - 193mm. The product is available in adhesive configuration. It is a pcb trace antenna. VSWR Information: 2.77, 1.35, 2.42, 1.5, 1.45, 1.38, 1.47, 1.35, 1.08. The product is designated with the ear99 code number.
