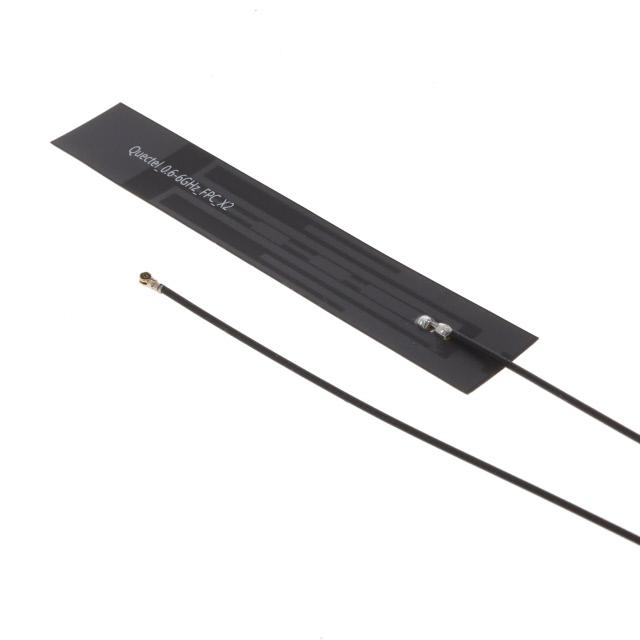

Quectel YF0020AA
Product Information
Frequency Range:
698MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.4GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.17GHz ~ 2.69GHz, 3.3GHz ~ 4GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz
HTSUS:
8517.71.0000
RoHS Status:
RoHS Compliant
Frequency Group:
Wide Band
Height (Max):
0.005" (0.13mm)
edacadModel:
YF0020AA Models
Applications:
6G
Gain:
1.2dBi, 4.36dBi, 4.2dBi, 3.8dBi, 2.7dBi, 2.9dBi
edacadModelUrl:
/en/models/15706715
Number of Bands:
8
Package:
Bag
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular
Frequency (Center/Band):
829MHz, 1.228GHz, 1.505GHz, 1.94GHz, 3.65GHz, 4.5GHz, 5.5GHz
Termination:
IPEX MHF4
Ingress Protection:
-
Features:
Cable - 184mm
Mounting Type:
Surface Mount
Antenna Type:
Flat Patch
Series:
-
VSWR:
1.6, 1.7, 1.8, 2.01, 2.4, 3.3
Return Loss:
-
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search YF0020AA on website for other similar products.
We accept all major payment methods for all products including ET22741597. Please check your shopping cart at the time of order.
You can order Quectel brand products with YF0020AA directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in RF Antennas category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Quectel YF0020AA. You can also check on our website or by contacting our customer support team for further order details on Quectel YF0020AA.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET22741597 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Quectel" products on our website by using Enrgtech's Unique Manufacturing Part Number ET22741597.
Yes. We ship YF0020AA Internationally to many countries around the world.
This is manufactured by Quectel. The manufacturer part number is YF0020AA. The frequency range includes 698mhz ~ 960mhz, 1.176ghz ~ 1.28ghz, 1.4ghz ~ 1.61ghz, 1.71ghz ~ 2.17ghz, 2.17ghz ~ 2.69ghz, 3.3ghz ~ 4ghz, 4ghz ~ 5ghz, 5ghz ~ 6ghz. It is assigned with possible HTSUS value of 8517.71.0000. The product is rohs compliant. The product boasts a wide band frequency group. Additionally, the 0.005" (0.13mm) is the maximum height of the product. The product is widely employed in 6g. The 1.2dbi, 4.36dbi, 4.2dbi, 3.8dbi, 2.7dbi, 2.9dbi is the gain value of a bespoke product. It contains 8 bands. It is shipped in bag package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes cellular. While it has a frequency of 829mhz, 1.228ghz, 1.505ghz, 1.94ghz, 3.65ghz, 4.5ghz, 5.5ghz at center/band. The product features ipex mhf4 termination style. The splendid features of the product include cable - 184mm. The product is available in surface mount configuration. It is a flat patch antenna. VSWR Information: 1.6, 1.7, 1.8, 2.01, 2.4, 3.3. The product is designated with the ear99 code number.
