Frequency Range:
698MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.4GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.17GHz ~ 2.69GHz, 3.3GHz ~ 4GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz
HTSUS:
8517.71.0000
RoHS Status:
RoHS Compliant
Frequency Group:
Wide Band
Height (Max):
0.005" (0.13mm)
edacadModel:
YF0017BA Models
Applications:
6G
Gain:
1.5dBi, 2.8dBi, 2.8dBi, 4.1dBi, 3.6dBi, 4.4dBi, 3dBi
edacadModelUrl:
/en/models/15706726
Number of Bands:
8
Package:
Bag
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular
Frequency (Center/Band):
829MHz, 1.228GHz, 1.505GHz, 1.94GHz, 3.65GHz, 4.5GHz, 5.5GHz
Termination:
IPEX MHF4
Ingress Protection:
-
Features:
Cable - 193mm
Mounting Type:
Surface Mount
Antenna Type:
Flat Patch
Series:
-
VSWR:
1.6, 1.7, 1.9, 2, 2.1, 2.6
Return Loss:
-
ECCN:
EAR99

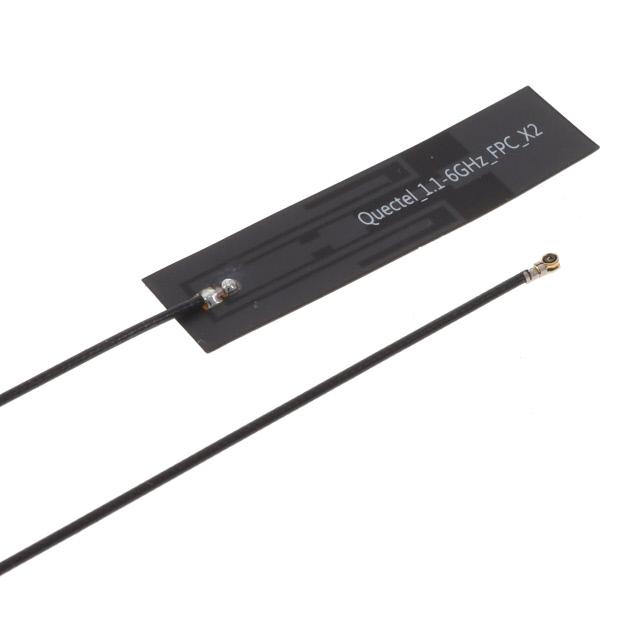

This is manufactured by Quectel. The manufacturer part number is YF0017BA. The frequency range includes 698mhz ~ 960mhz, 1.176ghz ~ 1.28ghz, 1.4ghz ~ 1.61ghz, 1.71ghz ~ 2.17ghz, 2.17ghz ~ 2.69ghz, 3.3ghz ~ 4ghz, 4ghz ~ 5ghz, 5ghz ~ 6ghz. It is assigned with possible HTSUS value of 8517.71.0000. The product is rohs compliant. The product boasts a wide band frequency group. Additionally, the 0.005" (0.13mm) is the maximum height of the product. The product is widely employed in 6g. The 1.5dbi, 2.8dbi, 2.8dbi, 4.1dbi, 3.6dbi, 4.4dbi, 3dbi is the gain value of a bespoke product. It contains 8 bands. It is shipped in bag package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes cellular. While it has a frequency of 829mhz, 1.228ghz, 1.505ghz, 1.94ghz, 3.65ghz, 4.5ghz, 5.5ghz at center/band. The product features ipex mhf4 termination style. The splendid features of the product include cable - 193mm. The product is available in surface mount configuration. It is a flat patch antenna. VSWR Information: 1.6, 1.7, 1.9, 2, 2.1, 2.6. The product is designated with the ear99 code number.
