Frequency Range:
617MHz ~ 960MHz, 1.427GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.925GHz, 6GHz ~ 7.125GHz
HTSUS:
8517.79.0000
Frequency Group:
Wide Band
Height (Max):
0.006" (0.15mm)
Applications:
4G, 5G
Gain:
1.5dBi, 3.8dBi, 4.6dBi, 5.8dBi, 5dBi, 4.8dBi
Number of Bands:
6
Package:
Bag
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular
Frequency (Center/Band):
788.5MHz, 2.0585GHz, 3.75GHz, 4.7GHz, 5.5375GHz, 6.5625GHz
Termination:
U.FL (UMCC), IPEX MHF
Ingress Protection:
-
Features:
Cable - 100mm
Mounting Type:
Adhesive
Antenna Type:
Flat Patch
Series:
W6114
Power - Max:
3 W
VSWR:
-
Return Loss:
-5dB, -6dB, -5dB, -6dB, -5dB, -4dB
ECCN:
EAR99

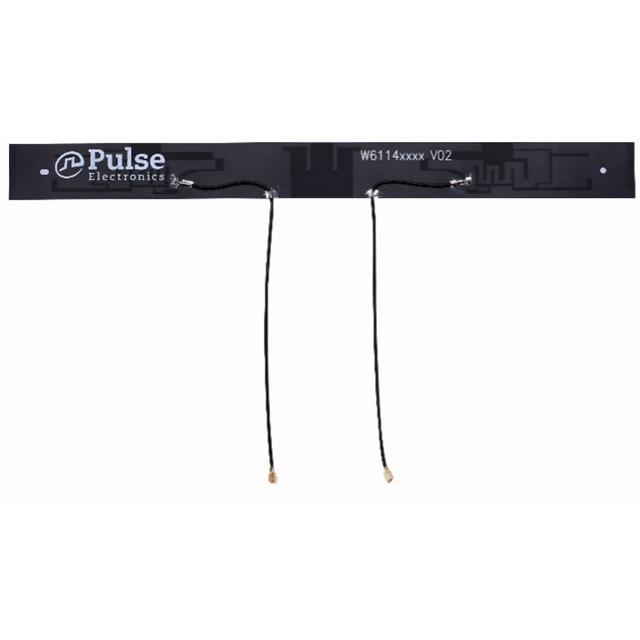

This is manufactured by PulseLarsen Antennas. The manufacturer part number is W6114B0100. The frequency range includes 617mhz ~ 960mhz, 1.427ghz ~ 2.69ghz, 3.3ghz ~ 4.2ghz, 4.4ghz ~ 5ghz, 5.15ghz ~ 5.925ghz, 6ghz ~ 7.125ghz. It is assigned with possible HTSUS value of 8517.79.0000. The product boasts a wide band frequency group. Additionally, the 0.006" (0.15mm) is the maximum height of the product. The product is widely employed in 4g, 5g. The 1.5dbi, 3.8dbi, 4.6dbi, 5.8dbi, 5dbi, 4.8dbi is the gain value of a bespoke product. It contains 6 bands. It is shipped in bag package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes cellular. While it has a frequency of 788.5mhz, 2.0585ghz, 3.75ghz, 4.7ghz, 5.5375ghz, 6.5625ghz at center/band. The product features u.fl (umcc), ipex mhf termination style. The splendid features of the product include cable - 100mm. The product is available in adhesive configuration. It is a flat patch antenna. The product w6114, is a highly preferred choice for users. The maximum power of the product is 3 w. It has a return loss of -5db, -6db, -5db, -6db, -5db, -4db. The product is designated with the ear99 code number.
