Frequency Range:
698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz
HTSUS:
8517.71.0000
RoHS Status:
ROHS3 Compliant
Frequency Group:
Wide Band
Height (Max):
7.657" (194.50mm)
REACH Status:
REACH Unaffected
Applications:
2G, 3G, 4G, CDMA, DCS, EVDO, GSM, GPRS, HSPA, PCS, LTE, UMTS, WCDMA
Gain:
0.4dBi, 2.6dBi, 1.3dBi
Number of Bands:
8
Package:
Bulk
Moisture Sensitivity Level (MSL):
Not Applicable
RF Family/Standard:
Cellular
Frequency (Center/Band):
700MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.6GHz
Termination:
SMA Male, RP-SMA Male
standardLeadTime:
5 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Connector Mount
Antenna Type:
Blade, Tilt
Series:
-
Power - Max:
25 W
VSWR:
2.4, 1.6, 2.2
Return Loss:
-7.7dB, -12.7dB, -8.5dB
ECCN:
EAR99

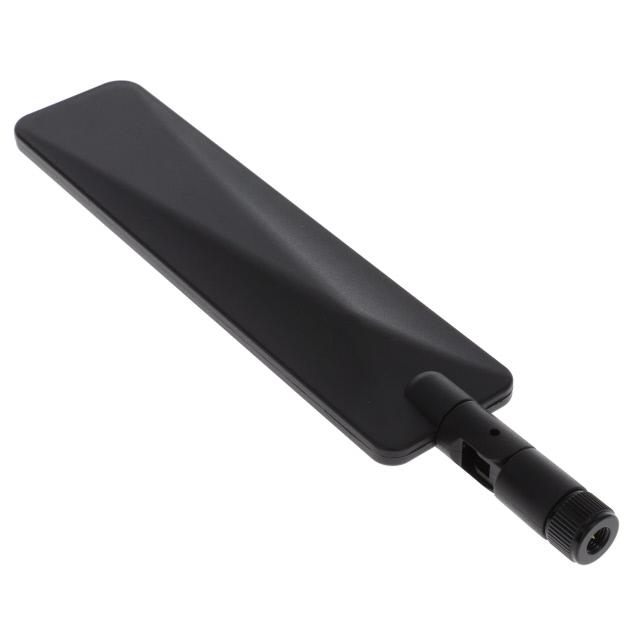

This is manufactured by Advantech Corp. The manufacturer part number is BB-2JW0124Z-C868B. The frequency range includes 698mhz ~ 960mhz, 1.71ghz ~ 2.17ghz, 2.5ghz ~ 2.7ghz. It is assigned with possible HTSUS value of 8517.71.0000. The product is rohs3 compliant. The product boasts a wide band frequency group. Additionally, the 7.657" (194.50mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in 2g, 3g, 4g, cdma, dcs, evdo, gsm, gprs, hspa, pcs, lte, umts, wcdma. The 0.4dbi, 2.6dbi, 1.3dbi is the gain value of a bespoke product. It contains 8 bands. It is shipped in bulk package . Its typical moisture sensitivity level is not applicable. The standard RF Family of the product includes cellular. While it has a frequency of 700mhz, 850mhz, 900mhz, 1.7ghz, 1.8ghz, 1.9ghz, 2.1ghz, 2.6ghz at center/band. The product features sma male, rp-sma male termination style. It has a long 5 weeks standard lead time. The product is available in connector mount configuration. It is a blade, tilt antenna. The maximum power of the product is 25 w. VSWR Information: 2.4, 1.6, 2.2. It has a return loss of -7.7db, -12.7db, -8.5db. The product is designated with the ear99 code number.
