Frequency Range:
617MHz ~ 698MHz, 698MHz ~ 960MHz, 1.427GHz ~ 1.695GHz, 1.695GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 6GHz, 6GHz ~ 7.125GHz
HTSUS:
8517.79.0000
Frequency Group:
Wide Band
Height (Max):
3.780" (96.00mm)
Applications:
5G
Gain:
4.2dBi, 4dBi, 4.5dBi, 5.5dBi, 5.5dBi, 5.5dBi, 5.5dBi
Number of Bands:
7
Package:
Box
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular
Frequency (Center/Band):
657.5MHz, 829MHz, 1.561GHz, 2.1975GHz, 3.75GHz, 5.2GHz, 6.5625GHz
Termination:
N Type Female
standardLeadTime:
20 Weeks
Ingress Protection:
IP67
Features:
-
Mounting Type:
Panel Mount
Antenna Type:
Dome
Series:
On-Ground Plane
Power - Max:
100 W
VSWR:
2.5, 2, 2.7, 2, 1.5, 1.5, 1.5
Return Loss:
-
ECCN:
5A991G

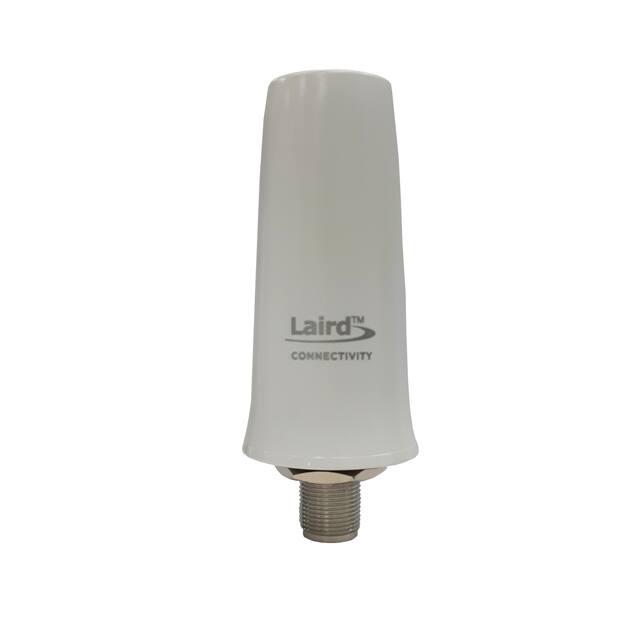

This is manufactured by Laird Connectivity Inc.. The manufacturer part number is FTRA6171M5PW-001. The frequency range includes 617mhz ~ 698mhz, 698mhz ~ 960mhz, 1.427ghz ~ 1.695ghz, 1.695ghz ~ 2.7ghz, 3.3ghz ~ 4.2ghz, 4.4ghz ~ 6ghz, 6ghz ~ 7.125ghz. It is assigned with possible HTSUS value of 8517.79.0000. The product boasts a wide band frequency group. Additionally, the 3.780" (96.00mm) is the maximum height of the product. The product is widely employed in 5g. The 4.2dbi, 4dbi, 4.5dbi, 5.5dbi, 5.5dbi, 5.5dbi, 5.5dbi is the gain value of a bespoke product. It contains 7 bands. It is shipped in box package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes cellular. While it has a frequency of 657.5mhz, 829mhz, 1.561ghz, 2.1975ghz, 3.75ghz, 5.2ghz, 6.5625ghz at center/band. The product features n type female termination style. It has a long 20 weeks standard lead time. It is IP rated with ip67. The product is available in panel mount configuration. It is a dome antenna. The product on-ground plane, is a highly preferred choice for users. The maximum power of the product is 100 w. VSWR Information: 2.5, 2, 2.7, 2, 1.5, 1.5, 1.5. The product is designated with the 5a991g code number.
