Frequency Range:
704MHz ~ 824MHz, 824MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz
HTSUS:
8517.71.0000
RoHS Status:
ROHS3 Compliant
Frequency Group:
Wide Band
Height (Max):
2.835" (72.00mm)
Applications:
2G, 3G, 4G, 5G, Cellular, GSM, LTE, NB-IOT
Gain:
1.4dBi, 2.9dBi, 3.5dBi, 3.7dBi, 2.9dBi, 3.4dBi, 2.6dBi, 5.9dBi
Number of Bands:
8
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular, Navigation
Frequency (Center/Band):
764MHz, 892MHz, 1.795GHz, 1.92GHz, 1.94GHz, 2.35GHz, 2.59GHz, 3.55GHz
Termination:
SMA Male
standardLeadTime:
6 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Connector Mount
Antenna Type:
Whip, Tilt/Swivel
Series:
-
Power - Max:
10 W
VSWR:
-
Return Loss:
-
ECCN:
EAR99

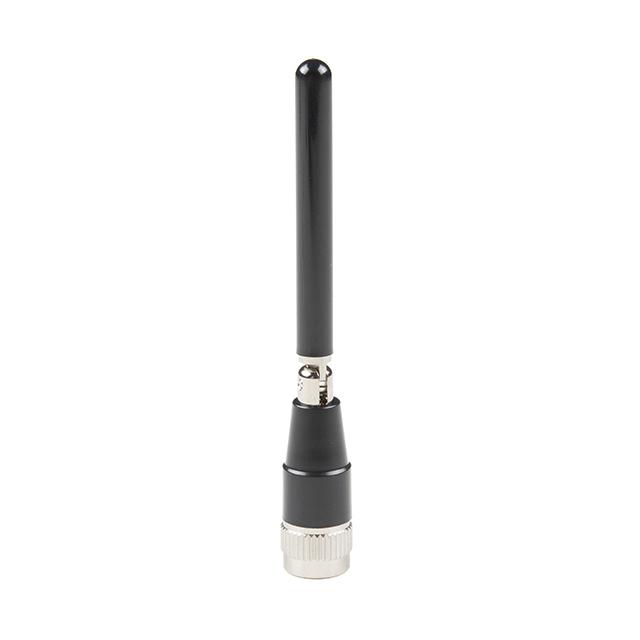

This is manufactured by SparkFun Electronics. The manufacturer part number is WRL-18153. The frequency range includes 704mhz ~ 824mhz, 824mhz ~ 960mhz, 1.71ghz ~ 1.88ghz, 1.85ghz ~ 1.99ghz, 1.71ghz ~ 2.17ghz, 2.3ghz ~ 2.4ghz, 2.49ghz ~ 2.69ghz, 3.3ghz ~ 3.8ghz. It is assigned with possible HTSUS value of 8517.71.0000. The product is rohs3 compliant. The product boasts a wide band frequency group. Additionally, the 2.835" (72.00mm) is the maximum height of the product. The product is widely employed in 2g, 3g, 4g, 5g, cellular, gsm, lte, nb-iot. The 1.4dbi, 2.9dbi, 3.5dbi, 3.7dbi, 2.9dbi, 3.4dbi, 2.6dbi, 5.9dbi is the gain value of a bespoke product. It contains 8 bands. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes cellular, navigation. While it has a frequency of 764mhz, 892mhz, 1.795ghz, 1.92ghz, 1.94ghz, 2.35ghz, 2.59ghz, 3.55ghz at center/band. The product features sma male termination style. It has a long 6 weeks standard lead time. The product is available in connector mount configuration. It is a whip, tilt/swivel antenna. The maximum power of the product is 10 w. The product is designated with the ear99 code number.
