Frequency Range:
617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 4.2GHz ~ 4.7GHz, 5GHz ~ 5.925GHz
HTSUS:
8517.71.0000
RoHS Status:
ROHS3 Compliant
Frequency Group:
Wide Band
Height (Max):
8.661" (220.00mm)
REACH Status:
REACH Unaffected
Applications:
5G, DCS, GSM, LTE, PCS, UMTS, Wi-Fi
Gain:
1.29dBi, 2dBi, 1.29dBi, 3.77dBi, 4.55dBi, 5.49dBi, 5.21dBi, 5.14dBi, 6.57dBi, 7.72dBi
Number of Bands:
10
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular, WiFi
Frequency (Center/Band):
657.5MHz, 761MHz, 892MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz, 3.55GHz, 4.45GHz, 5.4625GHz
Termination:
SMA Male
standardLeadTime:
12 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Connector Mount
Antenna Type:
Whip, Straight
Series:
-
VSWR:
7.5, 4.5, 4.4, 1.9, 2.7, 4.1, 2.1, 2.5, 1.9, 2
Return Loss:
-2dB, -4dB, -4dB, -10dB, -7dB, -4dB, -9dB, -7dB, -10dB, -9dB
Base Product Number:
TA-C12B
ECCN:
EAR99

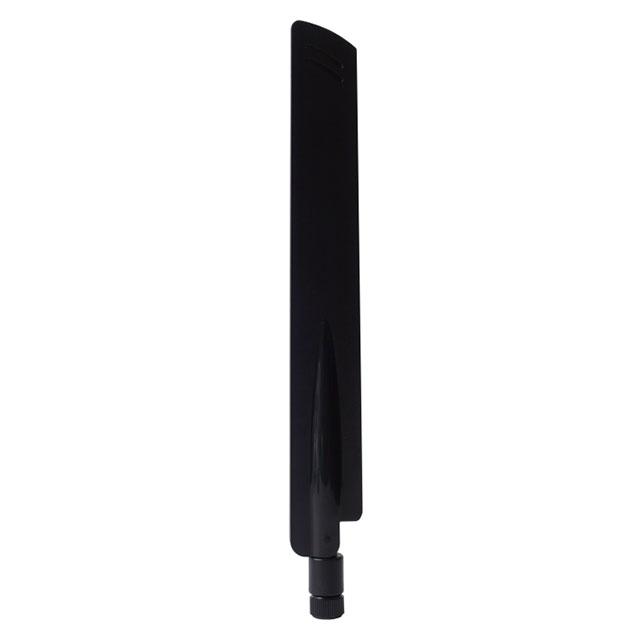

This is manufactured by Unictron Technologies Corporation. The manufacturer part number is TA-C12B-A-Z01. The frequency range includes 617mhz ~ 698mhz, 698mhz ~ 824mhz, 824mhz ~ 960mhz, 1.71ghz ~ 1.88ghz, 1.85ghz ~ 1.99ghz, 1.92ghz ~ 2.17ghz, 2.3ghz ~ 2.69ghz, 3.3ghz ~ 3.8ghz, 4.2ghz ~ 4.7ghz, 5ghz ~ 5.925ghz. It is assigned with possible HTSUS value of 8517.71.0000. The product is rohs3 compliant. The product boasts a wide band frequency group. Additionally, the 8.661" (220.00mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in 5g, dcs, gsm, lte, pcs, umts, wi-fi. The 1.29dbi, 2dbi, 1.29dbi, 3.77dbi, 4.55dbi, 5.49dbi, 5.21dbi, 5.14dbi, 6.57dbi, 7.72dbi is the gain value of a bespoke product. It contains 10 bands. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes cellular, wifi. While it has a frequency of 657.5mhz, 761mhz, 892mhz, 1.795ghz, 1.92ghz, 2.045ghz, 2.495ghz, 3.55ghz, 4.45ghz, 5.4625ghz at center/band. The product features sma male termination style. It has a long 12 weeks standard lead time. The product is available in connector mount configuration. It is a whip, straight antenna. VSWR Information: 7.5, 4.5, 4.4, 1.9, 2.7, 4.1, 2.1, 2.5, 1.9, 2. It has a return loss of -2db, -4db, -4db, -10db, -7db, -4db, -9db, -7db, -10db, -9db. Moreover, it corresponds to ta-c12b, a base product number of the product. The product is designated with the ear99 code number.
