Frequency Range:
617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.88GHz, 1.92GHz ~ 1.99GHz, 2.3GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 3.3GHz ~ 3.8GHz, 5.15GHz ~ 5.85GHz, 5.15GHz ~ 5.925GHz
HTSUS:
8529.10.9100
RoHS Status:
ROHS3 Compliant
Frequency Group:
Wide Band
Height (Max):
2.263" (57.47mm)
REACH Status:
REACH Unaffected
Applications:
4G/5G, Beidou, Galileo, GLONASS, GPS, GNSS, Wi-Fi
Gain:
0.25dBi, 1.44dBi, 2.93dBi, 3.76dBi, 3.75dBic, 4.44dBic, 4.54dBic, 4.55dBi, 2.93dBi, 3.97dBi, 5.06dBi, 3.12dBi, 5.99dBi, 7.03dBi, 6.28dBi
Number of Bands:
15
Package:
Bulk
Moisture Sensitivity Level (MSL):
Not Applicable
RF Family/Standard:
Cellular, Navigation, WiFi
Frequency (Center/Band):
657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz, 2.45GHz, 3.55GHz, 5.5GHz, 5.5375GHz
Termination:
RP-SMA Male, SMA Male
standardLeadTime:
11 Weeks
Ingress Protection:
IP67
Features:
Cable - 300mm, LNA, Filter
Mounting Type:
Panel Mount
Antenna Type:
Dome
Series:
Synergy
Power - Max:
2 W
VSWR:
2, 2.5
Return Loss:
-
ECCN:
7A994

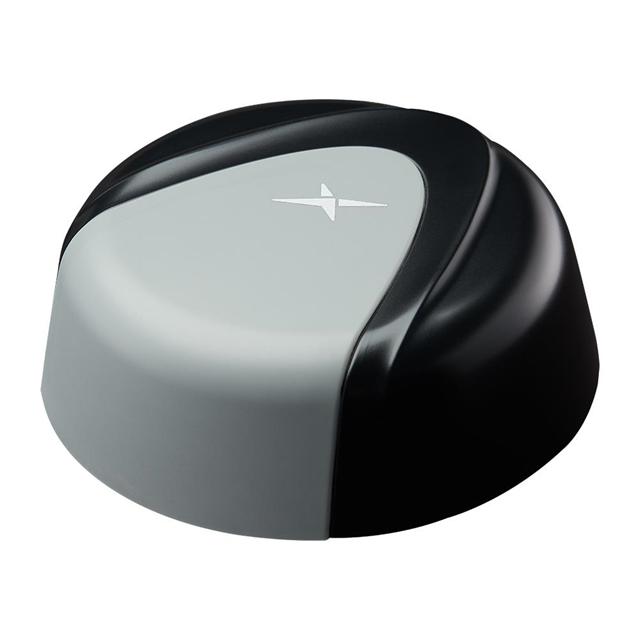

This is manufactured by Taoglas Limited. The manufacturer part number is MA1508.AK.001. The frequency range includes 617mhz ~ 698mhz, 698mhz ~ 806mhz, 824mhz ~ 960mhz, 1.427ghz ~ 1.518ghz, 1.71ghz ~ 1.88ghz, 1.85ghz ~ 1.88ghz, 1.92ghz ~ 1.99ghz, 2.3ghz ~ 2.69ghz, 2.4ghz ~ 2.5ghz, 3.3ghz ~ 3.8ghz, 5.15ghz ~ 5.85ghz, 5.15ghz ~ 5.925ghz. It is assigned with possible HTSUS value of 8529.10.9100. The product is rohs3 compliant. The product boasts a wide band frequency group. Additionally, the 2.263" (57.47mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in 4g/5g, beidou, galileo, glonass, gps, gnss, wi-fi. The 0.25dbi, 1.44dbi, 2.93dbi, 3.76dbi, 3.75dbic, 4.44dbic, 4.54dbic, 4.55dbi, 2.93dbi, 3.97dbi, 5.06dbi, 3.12dbi, 5.99dbi, 7.03dbi, 6.28dbi is the gain value of a bespoke product. It contains 15 bands. It is shipped in bulk package . Its typical moisture sensitivity level is not applicable. The standard RF Family of the product includes cellular, navigation, wifi. While it has a frequency of 657.5mhz, 752mhz, 892mhz, 1.4725ghz, 1.561ghz, 1.575ghz, 1.602ghz, 1.795ghz, 1.92ghz, 2.045ghz, 2.495ghz, 2.45ghz, 3.55ghz, 5.5ghz, 5.5375ghz at center/band. The product features rp-sma male, sma male termination style. It has a long 11 weeks standard lead time. It is IP rated with ip67. The splendid features of the product include cable - 300mm, lna, filter. The product is available in panel mount configuration. It is a dome antenna. The product synergy, is a highly preferred choice for users. The maximum power of the product is 2 w. VSWR Information: 2, 2.5. The product is designated with the 7a994 code number.
