Frequency Range:
600MHz ~ 960MHz, 1.39GHz ~ 1.435GHz, 1.71GHz ~ 1.99GHz, 1.755GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 4.8GHz ~ 6GHz
HTSUS:
8529.10.9100
RoHS Status:
ROHS3 Compliant
Frequency Group:
Wide Band
Height (Max):
0.008" (0.20mm)
REACH Status:
REACH Unaffected
Applications:
2G, 3G, 4G, 5G, GNSS, ISM, Wi-Fi
Gain:
0.2dBi, 2.5dBi, 4.1dBi, 2dBi, 1.6dBi, 2.8dBi, 2.6dBi, 3.5dBi, 4.8dBi
Number of Bands:
9
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular, General ISM, Navigation, WiFi
Frequency (Center/Band):
780MHz, 1.4125GHz, 1.575GHz, 1.85GHz, 1.9625GHz, 2.45GHz, 2.6GHz, 3.55GHz, 5.4GHz
Termination:
IPEX MHF4L
standardLeadTime:
11 Weeks
Ingress Protection:
-
Features:
Cable - 150mm
Mounting Type:
Adhesive
Antenna Type:
Flat Patch
Series:
Maximus
Power - Max:
5 W
VSWR:
1.1, 2, 2.2, 3, 3.5
Return Loss:
-5dB, -5.5dB, -6dB, -7dB, -10dB, -20dB
ECCN:
7A994

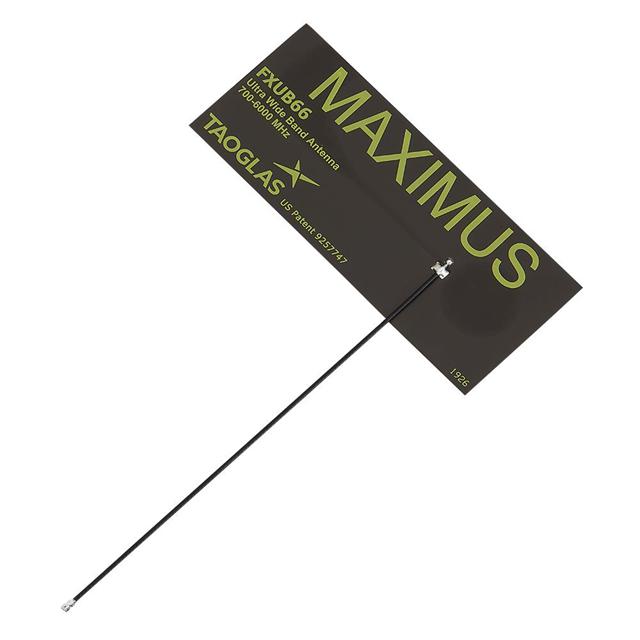

This is manufactured by Taoglas Limited. The manufacturer part number is FXUB66.54.0150C. The frequency range includes 600mhz ~ 960mhz, 1.39ghz ~ 1.435ghz, 1.71ghz ~ 1.99ghz, 1.755ghz ~ 2.17ghz, 2.4ghz ~ 2.5ghz, 2.5ghz ~ 2.7ghz, 3.3ghz ~ 3.8ghz, 4.8ghz ~ 6ghz. It is assigned with possible HTSUS value of 8529.10.9100. The product is rohs3 compliant. The product boasts a wide band frequency group. Additionally, the 0.008" (0.20mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in 2g, 3g, 4g, 5g, gnss, ism, wi-fi. The 0.2dbi, 2.5dbi, 4.1dbi, 2dbi, 1.6dbi, 2.8dbi, 2.6dbi, 3.5dbi, 4.8dbi is the gain value of a bespoke product. It contains 9 bands. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes cellular, general ism, navigation, wifi. While it has a frequency of 780mhz, 1.4125ghz, 1.575ghz, 1.85ghz, 1.9625ghz, 2.45ghz, 2.6ghz, 3.55ghz, 5.4ghz at center/band. The product features ipex mhf4l termination style. It has a long 11 weeks standard lead time. The splendid features of the product include cable - 150mm. The product is available in adhesive configuration. It is a flat patch antenna. The product maximus, is a highly preferred choice for users. The maximum power of the product is 5 w. VSWR Information: 1.1, 2, 2.2, 3, 3.5. It has a return loss of -5db, -5.5db, -6db, -7db, -10db, -20db. The product is designated with the 7a994 code number.
