Frequency Range:
1.4GHz ~ 1.52GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 3.5GHz ~ 5GHz, 5.15GHz ~ 5.925GHz
HTSUS:
8517.71.0000
RoHS Status:
ROHS3 Compliant
Frequency Group:
Wide Band
Height (Max):
2.835" (72.00mm)
REACH Status:
REACH Unaffected
Applications:
3G, 4G, 5G, HSPA, HSPA+, LTE, WCDMA
Gain:
3.31dBi, 4.48dBi, 3.59dBi, 5.38dBi, 5.42dBi, 2.73dBi
Number of Bands:
6
Package:
Bag
Moisture Sensitivity Level (MSL):
Not Applicable
RF Family/Standard:
Cellular
Frequency (Center/Band):
1.46GHz, 1.955GHz, 2.495GHz, 3.55GHz, 4.1GHz, 5.5375GHz
Termination:
SMA Male
standardLeadTime:
11 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Connector Mount
Antenna Type:
Whip, Right Angle
Series:
-
Power - Max:
2 W
VSWR:
-
Return Loss:
-
Base Product Number:
TG.59
ECCN:
EAR99

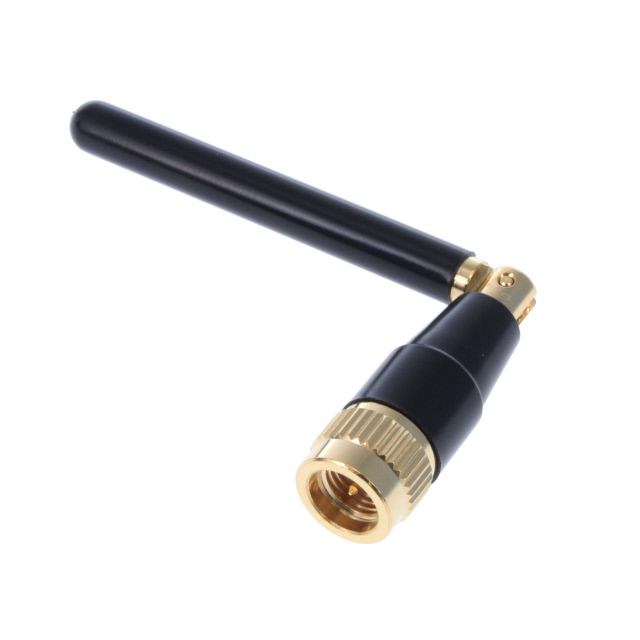

This is manufactured by Taoglas Limited. The manufacturer part number is TG.59.0113. The frequency range includes 1.4ghz ~ 1.52ghz, 1.71ghz ~ 2.2ghz, 2.3ghz ~ 2.69ghz, 3.3ghz ~ 3.8ghz, 3.5ghz ~ 5ghz, 5.15ghz ~ 5.925ghz. It is assigned with possible HTSUS value of 8517.71.0000. The product is rohs3 compliant. The product boasts a wide band frequency group. Additionally, the 2.835" (72.00mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in 3g, 4g, 5g, hspa, hspa+, lte, wcdma. The 3.31dbi, 4.48dbi, 3.59dbi, 5.38dbi, 5.42dbi, 2.73dbi is the gain value of a bespoke product. It contains 6 bands. It is shipped in bag package . Its typical moisture sensitivity level is not applicable. The standard RF Family of the product includes cellular. While it has a frequency of 1.46ghz, 1.955ghz, 2.495ghz, 3.55ghz, 4.1ghz, 5.5375ghz at center/band. The product features sma male termination style. It has a long 11 weeks standard lead time. The product is available in connector mount configuration. It is a whip, right angle antenna. The maximum power of the product is 2 w. Moreover, it corresponds to tg.59, a base product number of the product. The product is designated with the ear99 code number.
