Frequency Range:
535kHz ~ 1.605MHz, 88MHz ~ 108MHz, 380MHz ~ 470MHz, 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 5.15GHz ~ 5.85GHz, 5.15GHz ~ 5.925GHz
HTSUS:
8529.10.9100
RoHS Status:
ROHS3 Compliant
Frequency Group:
UHF (1GHz ~ 2GHz)
Height (Max):
3.661" (92.98mm)
REACH Status:
REACH Unaffected
Applications:
3G, 4G, 5G, Beidou, Galileo, GLONASS, GNSS, GPS, HSPA, HSPA+, LTE, WCDMA, Wi-Fi
Gain:
-1.7dBi, -3.7dBi, -1.9dBi, -0.3dBi, 1.6dBi, 3.6dBi, 0dBi, 1.8dBi, 0.6dBi, 0.4dBi, 2.8dBi, 3.3dBi, 0.9dBi, 3.7dBi
Number of Bands:
16
Package:
Bag
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular, Navigation, WiFi
Frequency (Center/Band):
1.07MHz, 98MHz, 425MHz, 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.955GHz, 2.45GHz, 2.59GHz, 3.55GHz, 5.5GHz, 5.5375GHz
Termination:
SMA Male
standardLeadTime:
11 Weeks
Ingress Protection:
IP67
Features:
Cable - 3m, LNA, Filter
Mounting Type:
Panel Mount
Antenna Type:
Dome
Series:
Raptor III
Power - Max:
10 W
VSWR:
2, 3.7
Return Loss:
-11dB
Base Product Number:
MA1270
ECCN:
7A994

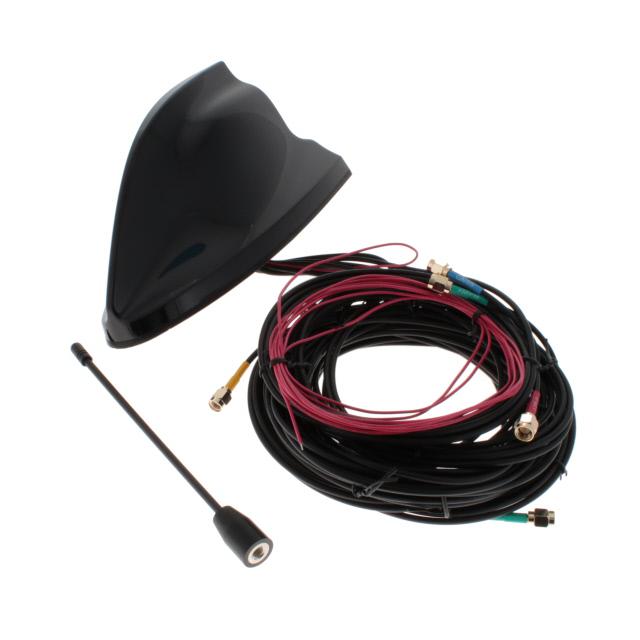

This is manufactured by Taoglas Limited. The manufacturer part number is MA1270.A.LBICGTY.005. The frequency range includes 535khz ~ 1.605mhz, 88mhz ~ 108mhz, 380mhz ~ 470mhz, 617mhz ~ 698mhz, 698mhz ~ 806mhz, 824mhz ~ 960mhz, 1.427ghz ~ 1.518ghz, 1.71ghz ~ 2.2ghz, 2.4ghz ~ 2.5ghz, 2.49ghz ~ 2.69ghz, 3.3ghz ~ 3.8ghz, 5.15ghz ~ 5.85ghz, 5.15ghz ~ 5.925ghz. It is assigned with possible HTSUS value of 8529.10.9100. The product is rohs3 compliant. The product boasts a uhf (1ghz ~ 2ghz) frequency group. Additionally, the 3.661" (92.98mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in 3g, 4g, 5g, beidou, galileo, glonass, gnss, gps, hspa, hspa+, lte, wcdma, wi-fi. The -1.7dbi, -3.7dbi, -1.9dbi, -0.3dbi, 1.6dbi, 3.6dbi, 0dbi, 1.8dbi, 0.6dbi, 0.4dbi, 2.8dbi, 3.3dbi, 0.9dbi, 3.7dbi is the gain value of a bespoke product. It contains 16 bands. It is shipped in bag package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes cellular, navigation, wifi. While it has a frequency of 1.07mhz, 98mhz, 425mhz, 657.5mhz, 752mhz, 892mhz, 1.4725ghz, 1.561ghz, 1.575ghz, 1.602ghz, 1.955ghz, 2.45ghz, 2.59ghz, 3.55ghz, 5.5ghz, 5.5375ghz at center/band. The product features sma male termination style. It has a long 11 weeks standard lead time. It is IP rated with ip67. The splendid features of the product include cable - 3m, lna, filter. The product is available in panel mount configuration. It is a dome antenna. The product raptor iii, is a highly preferred choice for users. The maximum power of the product is 10 w. VSWR Information: 2, 3.7. It has a return loss of -11db. Moreover, it corresponds to ma1270, a base product number of the product. The product is designated with the 7a994 code number.
