Frequency Range:
698MHz ~ 960MHz, 1.4GHz ~ 1.6GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 4.9GHz ~ 6GHz
HTSUS:
8529.10.9100
RoHS Status:
RoHS Compliant
Frequency Group:
Wide Band
Height (Max):
0.008" (0.20mm)
Applications:
2G, 3G, 4G, 5G, Bluetooth, GNSS, ISM, Wi-Fi, Zigbee™
Gain:
1.9dBi, 2.5dBi, 3.2dBi, 3.3dBi, 3.5dBi
Number of Bands:
5
Package:
Bag
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
802.15.4, Bluetooth, Cellular, General ISM, Navigation, WiFi
Frequency (Center/Band):
829MHz, 1.5GHz, 2.2GHz, 3.55GHz, 5.45GHz
Termination:
SMA Male
standardLeadTime:
14 Weeks
Ingress Protection:
-
Features:
Cable - 384mm
Mounting Type:
Adhesive
Antenna Type:
PCB Trace
Series:
-
Power - Max:
5 W
VSWR:
-
Return Loss:
-4dB, -3dB, -6dB, -5dB, -4dB
ECCN:
7A994

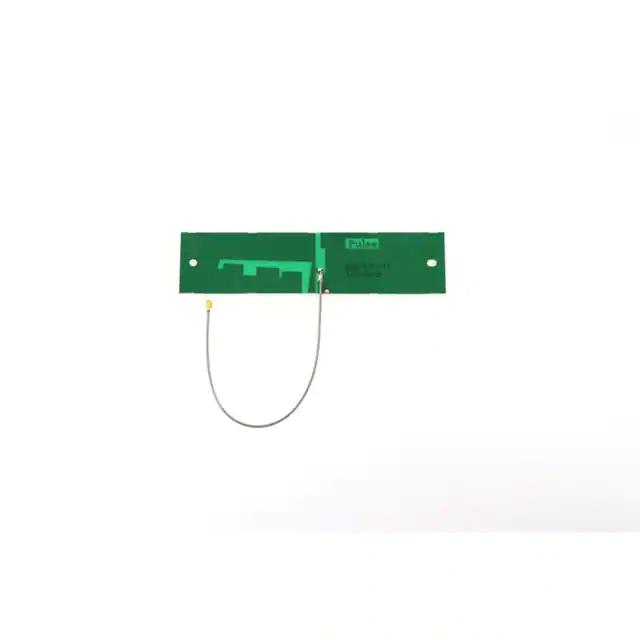

This is manufactured by PulseLarsen Antennas. The manufacturer part number is W3554G0384. The frequency range includes 698mhz ~ 960mhz, 1.4ghz ~ 1.6ghz, 1.71ghz ~ 2.69ghz, 3.3ghz ~ 3.8ghz, 4.9ghz ~ 6ghz. It is assigned with possible HTSUS value of 8529.10.9100. The product is rohs compliant. The product boasts a wide band frequency group. Additionally, the 0.008" (0.20mm) is the maximum height of the product. The product is widely employed in 2g, 3g, 4g, 5g, bluetooth, gnss, ism, wi-fi, zigbee™. The 1.9dbi, 2.5dbi, 3.2dbi, 3.3dbi, 3.5dbi is the gain value of a bespoke product. It contains 5 bands. It is shipped in bag package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes 802.15.4, bluetooth, cellular, general ism, navigation, wifi. While it has a frequency of 829mhz, 1.5ghz, 2.2ghz, 3.55ghz, 5.45ghz at center/band. The product features sma male termination style. It has a long 14 weeks standard lead time. The splendid features of the product include cable - 384mm. The product is available in adhesive configuration. It is a pcb trace antenna. The maximum power of the product is 5 w. It has a return loss of -4db, -3db, -6db, -5db, -4db. The product is designated with the 7a994 code number.
