Frequency Range:
617MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 5.15GHz ~ 5.925GHz
HTSUS:
8517.71.0000
RoHS Status:
ROHS3 Compliant
Frequency Group:
Wide Band
Height (Max):
0.059" (1.50mm)
REACH Status:
REACH Unaffected
Applications:
3G, 4G, LTE, Wi-Fi
Gain:
-1dBi, -2dBi, 3.8dBi, 2dBi, 4dBi, 4.5dBi, 4dBi
Number of Bands:
7
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
3 (168 Hours)
RF Family/Standard:
Cellular, WiFi
Frequency (Center/Band):
788.5MHz, 1.4725GHz, 1.955GHz, 2.45GHz, 2.59GHz, 3.55GHz, 5.5375GHz
Termination:
SMA Female
standardLeadTime:
11 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount
Antenna Type:
PCB Trace
Series:
-
VSWR:
3.5
Return Loss:
-
Base Product Number:
PCS.68
ECCN:
EAR99

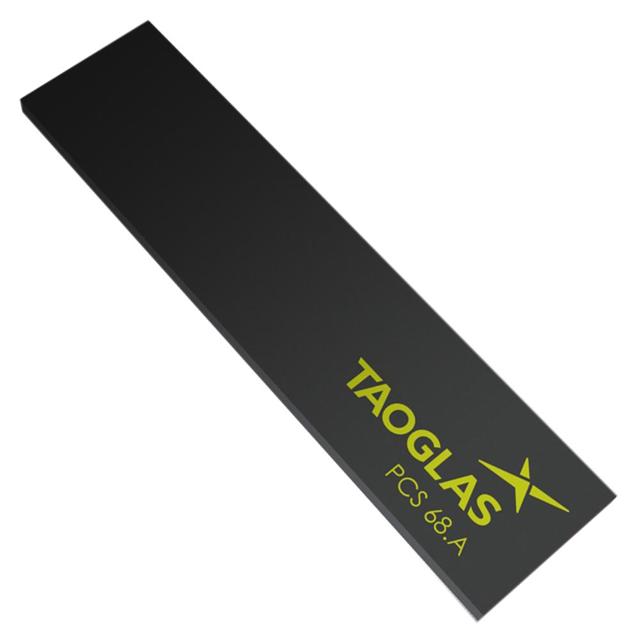

This is manufactured by Taoglas Limited. The manufacturer part number is PCS.68.A. The frequency range includes 617mhz ~ 960mhz, 1.427ghz ~ 1.518ghz, 1.71ghz ~ 2.2ghz, 2.4ghz ~ 2.5ghz, 2.49ghz ~ 2.69ghz, 3.3ghz ~ 3.8ghz, 5.15ghz ~ 5.925ghz. It is assigned with possible HTSUS value of 8517.71.0000. The product is rohs3 compliant. The product boasts a wide band frequency group. Additionally, the 0.059" (1.50mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in 3g, 4g, lte, wi-fi. The -1dbi, -2dbi, 3.8dbi, 2dbi, 4dbi, 4.5dbi, 4dbi is the gain value of a bespoke product. It contains 7 bands. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 3 (168 hours). The standard RF Family of the product includes cellular, wifi. While it has a frequency of 788.5mhz, 1.4725ghz, 1.955ghz, 2.45ghz, 2.59ghz, 3.55ghz, 5.5375ghz at center/band. The product features sma female termination style. It has a long 11 weeks standard lead time. The product is available in surface mount configuration. It is a pcb trace antenna. VSWR Information: 3.5. Moreover, it corresponds to pcs.68, a base product number of the product. The product is designated with the ear99 code number.
