Frequency Range:
617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.49GHz ~ 2.69GHz
HTSUS:
8529.10.9100
RoHS Status:
ROHS3 Compliant
Frequency Group:
Wide Band
Height (Max):
0.472" (12.00mm)
REACH Status:
REACH Unaffected
Applications:
BEIDOU, GLONASS, GPS, LTE
Gain:
-0.1dBi, -3.9dBi, -0.1dBi, -0.6dBi, -0.4dBi, -3.1dBi, -3.1dBi, -2.3dBi, -0.6dBi, -0.2dBi, -1dBi, -1.8dBi
Number of Bands:
9
Package:
Bag
Moisture Sensitivity Level (MSL):
Not Applicable
RF Family/Standard:
Cellular, Navigation
Frequency (Center/Band):
657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.955GHz, 2.59GHz
Termination:
SMA Male
standardLeadTime:
11 Weeks
Ingress Protection:
IP67
Features:
Cable - 2m, LNA, Filter
Mounting Type:
Adhesive
Antenna Type:
Module
Series:
-
Power - Max:
2 W
VSWR:
2, 3
Return Loss:
-
Base Product Number:
MA256
ECCN:
7A994

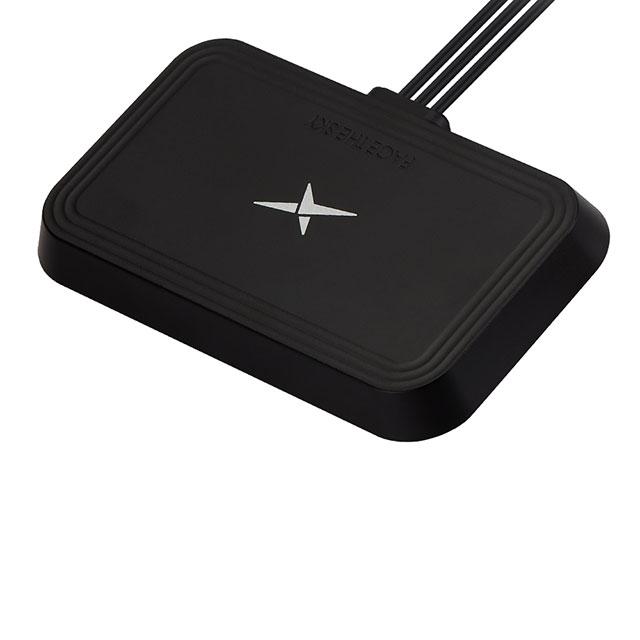

This is manufactured by Taoglas Limited. The manufacturer part number is MA256.A.LBI.001. The frequency range includes 617mhz ~ 698mhz, 698mhz ~ 806mhz, 824mhz ~ 960mhz, 1.427ghz ~ 1.518ghz, 1.71ghz ~ 2.2ghz, 2.49ghz ~ 2.69ghz. It is assigned with possible HTSUS value of 8529.10.9100. The product is rohs3 compliant. The product boasts a wide band frequency group. Additionally, the 0.472" (12.00mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in beidou, glonass, gps, lte. The -0.1dbi, -3.9dbi, -0.1dbi, -0.6dbi, -0.4dbi, -3.1dbi, -3.1dbi, -2.3dbi, -0.6dbi, -0.2dbi, -1dbi, -1.8dbi is the gain value of a bespoke product. It contains 9 bands. It is shipped in bag package . Its typical moisture sensitivity level is not applicable. The standard RF Family of the product includes cellular, navigation. While it has a frequency of 657.5mhz, 752mhz, 892mhz, 1.4725ghz, 1.561ghz, 1.575ghz, 1.602ghz, 1.955ghz, 2.59ghz at center/band. The product features sma male termination style. It has a long 11 weeks standard lead time. It is IP rated with ip67. The splendid features of the product include cable - 2m, lna, filter. The product is available in adhesive configuration. It is a module antenna. The maximum power of the product is 2 w. VSWR Information: 2, 3. Moreover, it corresponds to ma256, a base product number of the product. The product is designated with the 7a994 code number.
