Frequency Range:
698MHz ~ 960MHz, 1.42GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz
HTSUS:
8517.71.0000
Frequency Group:
Wide Band
Height (Max):
6.220" (158.00mm)
REACH Status:
Vendor Undefined
edacadModel:
2195736-1 Models
Applications:
Bluetooth, GNSS, LoRa, LTE, Sigfox, Wi-Fi
Gain:
-1dBi, 0dBi, 1dBi, 2.5dBi
edacadModelUrl:
/en/models/11508644
Number of Bands:
4
Package:
Bag
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Bluetooth, Cellular, Navigation, WiFi
Frequency (Center/Band):
829MHz, 1.515GHz, 1.94GHz, 2.5GHz
Termination:
SMA Male
Ingress Protection:
-
Features:
-
Mounting Type:
Connector Mount
Antenna Type:
Whip, Tilt
Series:
-
Power - Max:
10 W
VSWR:
2.5
Return Loss:
-
Base Product Number:
2195736
ECCN:
7A994

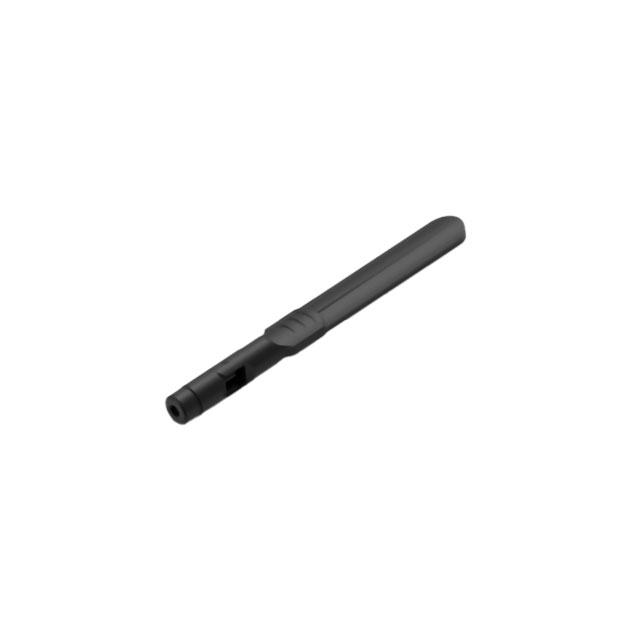

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 2195736-1. The frequency range includes 698mhz ~ 960mhz, 1.42ghz ~ 1.61ghz, 1.71ghz ~ 2.17ghz, 2.3ghz ~ 2.7ghz. It is assigned with possible HTSUS value of 8517.71.0000. The product boasts a wide band frequency group. Additionally, the 6.220" (158.00mm) is the maximum height of the product. In addition, it is vendor undefined. The product is widely employed in bluetooth, gnss, lora, lte, sigfox, wi-fi. The -1dbi, 0dbi, 1dbi, 2.5dbi is the gain value of a bespoke product. It contains 4 bands. It is shipped in bag package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes bluetooth, cellular, navigation, wifi. While it has a frequency of 829mhz, 1.515ghz, 1.94ghz, 2.5ghz at center/band. The product features sma male termination style. The product is available in connector mount configuration. It is a whip, tilt antenna. The maximum power of the product is 10 w. VSWR Information: 2.5. Moreover, it corresponds to 2195736, a base product number of the product. The product is designated with the 7a994 code number.
