Frequency Range:
617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.5GHz, 5.15GHz ~ 5.925GHz
HTSUS:
8517.71.0000
RoHS Status:
ROHS3 Compliant
Frequency Group:
Wide Band
Height (Max):
0.197" (5.00mm)
REACH Status:
REACH Unaffected
Applications:
LTE, Wi-Fi
Gain:
-0.7dBi, 0.5dBi, 1dBi, -0.5dBi, 3.4dBi, 2.9dBi, 4.3dBi, 3dBi
Number of Bands:
8
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
3 (168 Hours)
RF Family/Standard:
Cellular, WiFi
Frequency (Center/Band):
657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.59GHz, 3.4GHz, 5.5375GHz
Termination:
SMA Female
standardLeadTime:
11 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount
Antenna Type:
Chip
Series:
-
VSWR:
-
Return Loss:
-
Base Product Number:
PA.760
ECCN:
EAR99

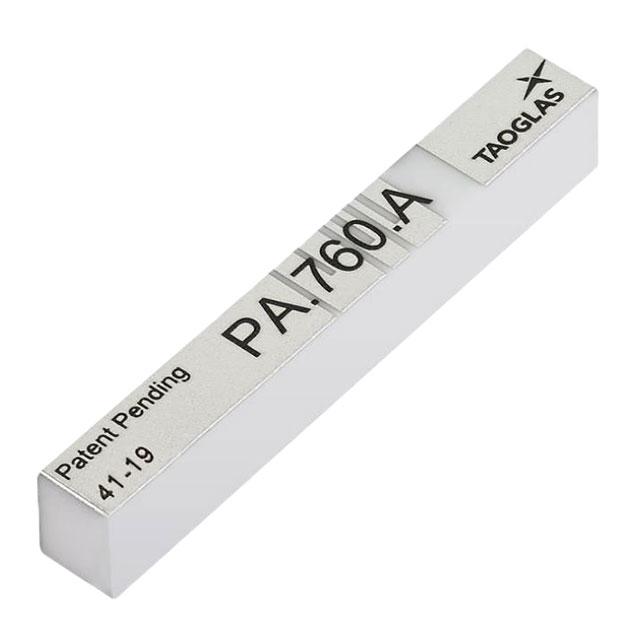

This is manufactured by Taoglas Limited. The manufacturer part number is PA.760.A. The frequency range includes 617mhz ~ 698mhz, 698mhz ~ 806mhz, 824mhz ~ 960mhz, 1.427ghz ~ 1.518ghz, 1.71ghz ~ 2.2ghz, 2.49ghz ~ 2.69ghz, 3.3ghz ~ 3.5ghz, 5.15ghz ~ 5.925ghz. It is assigned with possible HTSUS value of 8517.71.0000. The product is rohs3 compliant. The product boasts a wide band frequency group. Additionally, the 0.197" (5.00mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in lte, wi-fi. The -0.7dbi, 0.5dbi, 1dbi, -0.5dbi, 3.4dbi, 2.9dbi, 4.3dbi, 3dbi is the gain value of a bespoke product. It contains 8 bands. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 3 (168 hours). The standard RF Family of the product includes cellular, wifi. While it has a frequency of 657.5mhz, 752mhz, 892mhz, 1.4725ghz, 1.955ghz, 2.59ghz, 3.4ghz, 5.5375ghz at center/band. The product features sma female termination style. It has a long 11 weeks standard lead time. The product is available in surface mount configuration. It is a chip antenna. Moreover, it corresponds to pa.760, a base product number of the product. The product is designated with the ear99 code number.
