Frequency Range:
698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.5GHz, 2.4GHz ~ 2.69GHz, 3.3GHz ~ 3.5GHz, 3.4GHz ~ 3.8GHz, 4.9GHz ~ 5.85GHz
HTSUS:
8529.10.9100
RoHS Status:
ROHS3 Compliant
Frequency Group:
Wide Band
Height (Max):
0.488" (12.40mm)
REACH Status:
REACH Unaffected
Applications:
Beidou, DCS, Galileo, GLONASS, GNSS, GPS, GSM, LTE, PCS, Wi-Fi
Gain:
4.14dBi, 2.76dBi, -2.77dBi, 2.14dBi, 2.24dBi, 2.54dBi, 3.74dBi, 4.28dBi, 4.75dBi, 3.03dBi, 4.06dBi
Number of Bands:
11
Package:
Bag
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular, Navigation, WiFi
Frequency (Center/Band):
752MHz, 892MHz, 1.4725GHz, 1.575GHz, 1.605GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.45GHz, 2.495GHz, 3.4GHz
Termination:
RP-SMA Male (1), SMA Male (2)
standardLeadTime:
11 Weeks
Ingress Protection:
IP65
Features:
Cable - 1m, LNA, Filter
Mounting Type:
Adhesive
Antenna Type:
Module
Series:
-
VSWR:
2, 2, 5.8, 5.8
Return Loss:
10
Base Product Number:
MA244
ECCN:
7A994

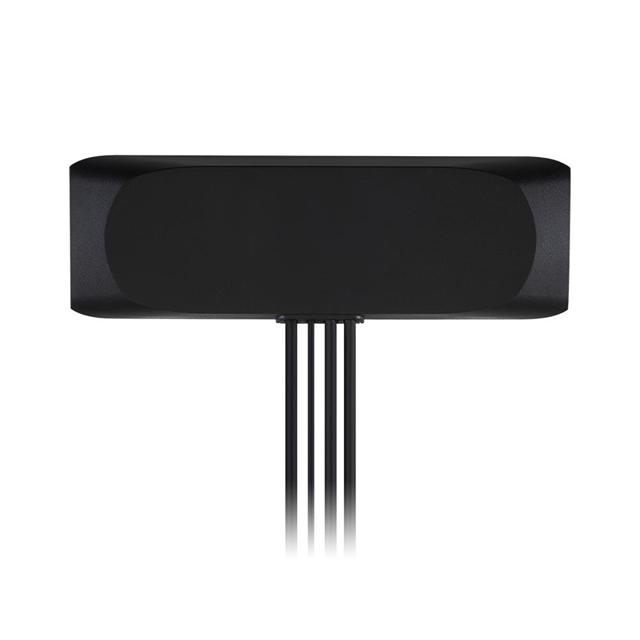

This is manufactured by Taoglas Limited. The manufacturer part number is MA244.LBIC.002. The frequency range includes 698mhz ~ 806mhz, 824mhz ~ 960mhz, 1.427ghz ~ 1.518ghz, 1.71ghz ~ 1.88ghz, 1.85ghz ~ 1.99ghz, 1.92ghz ~ 2.17ghz, 2.3ghz ~ 2.5ghz, 2.4ghz ~ 2.69ghz, 3.3ghz ~ 3.5ghz, 3.4ghz ~ 3.8ghz, 4.9ghz ~ 5.85ghz. It is assigned with possible HTSUS value of 8529.10.9100. The product is rohs3 compliant. The product boasts a wide band frequency group. Additionally, the 0.488" (12.40mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in beidou, dcs, galileo, glonass, gnss, gps, gsm, lte, pcs, wi-fi. The 4.14dbi, 2.76dbi, -2.77dbi, 2.14dbi, 2.24dbi, 2.54dbi, 3.74dbi, 4.28dbi, 4.75dbi, 3.03dbi, 4.06dbi is the gain value of a bespoke product. It contains 11 bands. It is shipped in bag package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes cellular, navigation, wifi. While it has a frequency of 752mhz, 892mhz, 1.4725ghz, 1.575ghz, 1.605ghz, 1.795ghz, 1.92ghz, 2.045ghz, 2.45ghz, 2.495ghz, 3.4ghz at center/band. The product features rp-sma male (1), sma male (2) termination style. It has a long 11 weeks standard lead time. It is IP rated with ip65. The splendid features of the product include cable - 1m, lna, filter. The product is available in adhesive configuration. It is a module antenna. VSWR Information: 2, 2, 5.8, 5.8. It has a return loss of 10. Moreover, it corresponds to ma244, a base product number of the product. The product is designated with the 7a994 code number.
