Frequency Range:
698MHz ~ 806MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz
HTSUS:
8529.10.9100
RoHS Status:
ROHS3 Compliant
Frequency Group:
Wide Band
Height (Max):
0.685" (17.40mm)
REACH Status:
REACH Unaffected
Applications:
LTE
Gain:
1.32dBi, 2.05dBi, 1.88dBi, 3.83dBi, 4.67dBi, 4.89dBi, 4.91dBi
Number of Bands:
7
Package:
Bag
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular
Frequency (Center/Band):
752MHz, 869MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz
Termination:
SMA Male
standardLeadTime:
11 Weeks
Ingress Protection:
IP67
Features:
Cable - 3m
Mounting Type:
Surface Mount
Antenna Type:
Dome
Series:
-
Power - Max:
2 W
VSWR:
-
Return Loss:
-4dB, -10dB, -6dB, -7dB, -6dB, -6dB, -4dB
ECCN:
EAR99

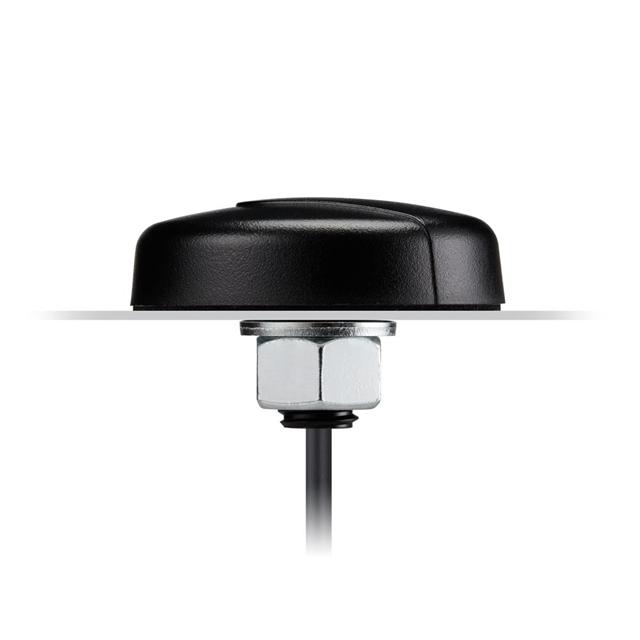

This is manufactured by Taoglas Limited. The manufacturer part number is G35.A.305111. The frequency range includes 698mhz ~ 806mhz, 824mhz ~ 894mhz, 880mhz ~ 960mhz, 1.71ghz ~ 1.88ghz, 1.85ghz ~ 1.99ghz, 1.92ghz ~ 2.17ghz, 2.3ghz ~ 2.69ghz. It is assigned with possible HTSUS value of 8529.10.9100. The product is rohs3 compliant. The product boasts a wide band frequency group. Additionally, the 0.685" (17.40mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in lte. The 1.32dbi, 2.05dbi, 1.88dbi, 3.83dbi, 4.67dbi, 4.89dbi, 4.91dbi is the gain value of a bespoke product. It contains 7 bands. It is shipped in bag package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes cellular. While it has a frequency of 752mhz, 869mhz, 920mhz, 1.795ghz, 1.92ghz, 2.045ghz, 2.495ghz at center/band. The product features sma male termination style. It has a long 11 weeks standard lead time. It is IP rated with ip67. The splendid features of the product include cable - 3m. The product is available in surface mount configuration. It is a dome antenna. The maximum power of the product is 2 w. It has a return loss of -4db, -10db, -6db, -7db, -6db, -6db, -4db. The product is designated with the ear99 code number.
