Frequency Range:
617MHz ~ 960MHz, 1.71GHz ~ 1.99GHz, 1.755GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.69GHz
HTSUS:
8529.10.9100
RoHS Status:
ROHS3 Compliant
Frequency Group:
Wide Band
Height (Max):
0.008" (0.20mm)
REACH Status:
REACH Unaffected
Applications:
LTE
Gain:
3.5dBi, 4.5dBi, 6dBi, 6dBi, 3.7dBi, 2.3dBi
Number of Bands:
7
Package:
Bag
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular
Frequency (Center/Band):
788.5MHz, 1.575GHz, 1.85GHz, 1.9625GHz, 2.45GHz, 2.595GHz
Termination:
U.FL (UMCC), IPEX MHF1
standardLeadTime:
11 Weeks
Ingress Protection:
-
Features:
Cable - 150mm
Mounting Type:
Adhesive
Antenna Type:
Flat Patch
Series:
-
Power - Max:
50 W
VSWR:
-
Return Loss:
4dB, -7dB, -10dB, -10dB, -5dB, -4dB
Base Product Number:
FXUB64
ECCN:
7A994

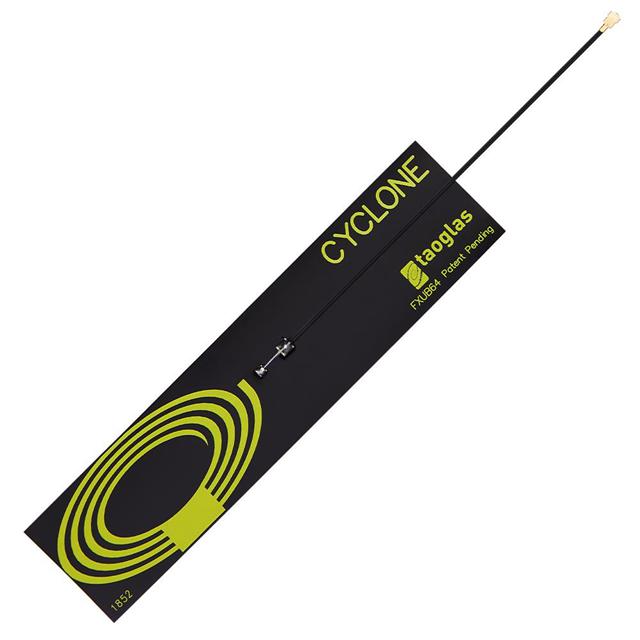

This is manufactured by Taoglas Limited. The manufacturer part number is FXUB64.18.0150A. The frequency range includes 617mhz ~ 960mhz, 1.71ghz ~ 1.99ghz, 1.755ghz ~ 2.17ghz, 2.4ghz ~ 2.5ghz, 2.5ghz ~ 2.69ghz. It is assigned with possible HTSUS value of 8529.10.9100. The product is rohs3 compliant. The product boasts a wide band frequency group. Additionally, the 0.008" (0.20mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in lte. The 3.5dbi, 4.5dbi, 6dbi, 6dbi, 3.7dbi, 2.3dbi is the gain value of a bespoke product. It contains 7 bands. It is shipped in bag package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes cellular. While it has a frequency of 788.5mhz, 1.575ghz, 1.85ghz, 1.9625ghz, 2.45ghz, 2.595ghz at center/band. The product features u.fl (umcc), ipex mhf1 termination style. It has a long 11 weeks standard lead time. The splendid features of the product include cable - 150mm. The product is available in adhesive configuration. It is a flat patch antenna. The maximum power of the product is 50 w. It has a return loss of 4db, -7db, -10db, -10db, -5db, -4db. Moreover, it corresponds to fxub64, a base product number of the product. The product is designated with the 7a994 code number.
