Frequency Range:
824MHz ~ 896MHz, 880MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz
HTSUS:
8529.10.9100
RoHS Status:
ROHS3 Compliant
Frequency Group:
Wide Band
Height (Max):
1.142" (29.00mm)
REACH Status:
REACH Unaffected
Applications:
GLONASS, GPS
Gain:
0.1dBi, 1.6dBi, -1dBi, 0.1dBi, 0.6dBi, -0.9dBi
Number of Bands:
6
Package:
Bag
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Navigation
Frequency (Center/Band):
860MHz, 920MHz, 1.575GHz, 1.795GHz, 1.92GHz, 2.045GHz
Termination:
SMA Male
Ingress Protection:
IP67, IP69K
Features:
Cable - 3m, LNA
Mounting Type:
Panel Mount
Antenna Type:
Dome
Series:
-
Power - Max:
10 W
VSWR:
2, 3.5
Return Loss:
-13dB, -11dB, -21dB, -21dB, -19dB
Base Product Number:
FMA103
ECCN:
7A994

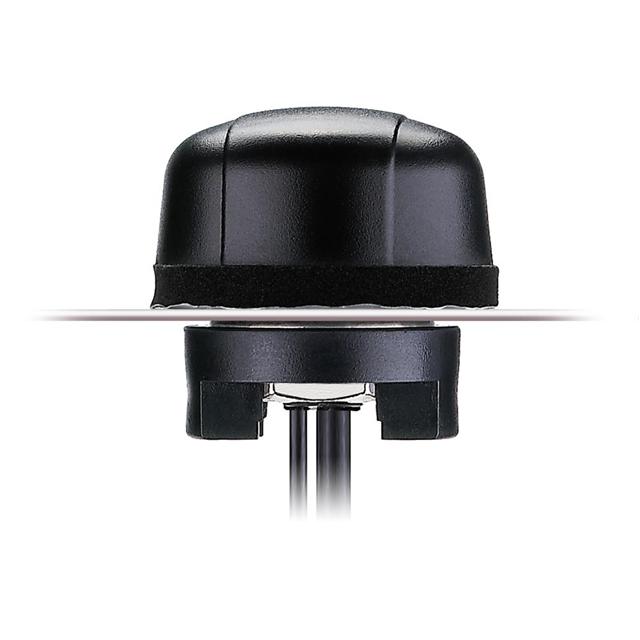

This is manufactured by Taoglas Limited. The manufacturer part number is FMA103.A.AF.001. The frequency range includes 824mhz ~ 896mhz, 880mhz ~ 960mhz, 1.574ghz ~ 1.576ghz, 1.71ghz ~ 1.88ghz, 1.85ghz ~ 1.99ghz, 1.92ghz ~ 2.17ghz. It is assigned with possible HTSUS value of 8529.10.9100. The product is rohs3 compliant. The product boasts a wide band frequency group. Additionally, the 1.142" (29.00mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in glonass, gps. The 0.1dbi, 1.6dbi, -1dbi, 0.1dbi, 0.6dbi, -0.9dbi is the gain value of a bespoke product. It contains 6 bands. It is shipped in bag package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes navigation. While it has a frequency of 860mhz, 920mhz, 1.575ghz, 1.795ghz, 1.92ghz, 2.045ghz at center/band. The product features sma male termination style. It is IP rated with ip67, ip69k. The splendid features of the product include cable - 3m, lna. The product is available in panel mount configuration. It is a dome antenna. The maximum power of the product is 10 w. VSWR Information: 2, 3.5. It has a return loss of -13db, -11db, -21db, -21db, -19db. Moreover, it corresponds to fma103, a base product number of the product. The product is designated with the 7a994 code number.
