Frequency Range:
698MHz ~ 960MHz, 1.574GHz ~ 1.607GHz, 1.615GHz ~ 1.626GHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 4.9GHz ~ 5.85GHz
HTSUS:
8529.10.9100
RoHS Status:
ROHS3 Compliant
Frequency Group:
Wide Band
Height (Max):
1.181" (30.00mm)
REACH Status:
REACH Unaffected
Applications:
DCS, GLONASS, GPS, GSM, LTE, PCS, UMTS, Wi-Fi
Gain:
0.28dBi, 1.7dBi, 1.7dBi, 5.47dBi, 4.9dBi, 5.11dBi, 6.79dBi, 7.06dBi, 6.81dBi, 5.14dBi, 1.35dBi, 4.77dBi
Number of Bands:
12
Package:
Box
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular, General ISM, Navigation, WiFi
Frequency (Center/Band):
750.5MHz, 859MHz, 920MHz, 1.575GHz, 1.602GHz, 1.621GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.45GHz, 2.59GHz, 5.375GHz
Termination:
U.FL (UMCC), IPEX MHF1
standardLeadTime:
12 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount
Antenna Type:
Ceramic Patch
Series:
-
VSWR:
2, 2.2, 4
Return Loss:
-
Base Product Number:
MAT.500
ECCN:
7A994

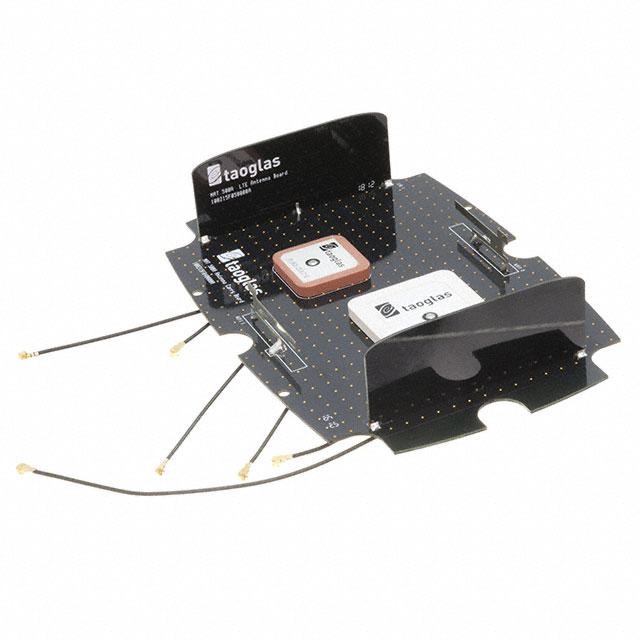

This is manufactured by Taoglas Limited. The manufacturer part number is MAT.500.A. The frequency range includes 698mhz ~ 960mhz, 1.574ghz ~ 1.607ghz, 1.615ghz ~ 1.626ghz, 1.71ghz ~ 2.17ghz, 2.49ghz ~ 2.69ghz, 4.9ghz ~ 5.85ghz. It is assigned with possible HTSUS value of 8529.10.9100. The product is rohs3 compliant. The product boasts a wide band frequency group. Additionally, the 1.181" (30.00mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in dcs, glonass, gps, gsm, lte, pcs, umts, wi-fi. The 0.28dbi, 1.7dbi, 1.7dbi, 5.47dbi, 4.9dbi, 5.11dbi, 6.79dbi, 7.06dbi, 6.81dbi, 5.14dbi, 1.35dbi, 4.77dbi is the gain value of a bespoke product. It contains 12 bands. It is shipped in box package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes cellular, general ism, navigation, wifi. While it has a frequency of 750.5mhz, 859mhz, 920mhz, 1.575ghz, 1.602ghz, 1.621ghz, 1.795ghz, 1.92ghz, 2.045ghz, 2.45ghz, 2.59ghz, 5.375ghz at center/band. The product features u.fl (umcc), ipex mhf1 termination style. It has a long 12 weeks standard lead time. The product is available in surface mount configuration. It is a ceramic patch antenna. VSWR Information: 2, 2.2, 4. Moreover, it corresponds to mat.500, a base product number of the product. The product is designated with the 7a994 code number.
