Frequency Range:
617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz
HTSUS:
8529.10.9100
RoHS Status:
RoHS Compliant
Frequency Group:
Wide Band
Height (Max):
3.100" (78.74mm)
REACH Status:
REACH Unaffected
Applications:
4G, CAT-M1, CBRS, Cellular, GSM, LTE, LTE-M, NB-IOT, LPWA, UMTS
Gain:
3.4dBi, 4.8dBi, 5dBi, 3.9dBi, 3.4dBi, 4.1dBi, 4.6dBi
Number of Bands:
7
Package:
Bag
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular, General ISM
Frequency (Center/Band):
600MHz, 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.5GHz, 3.3GHz, 3.5GHz, 3.7GHz
Termination:
SMA Male
standardLeadTime:
13 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Connector Mount
Antenna Type:
Whip, Tilt/Swivel
Series:
MON
Power - Max:
10 W
VSWR:
3.3, 2.2, 2.6, 3.2, 2.3, 1.9, 2.2
Return Loss:
-5.3dB, -8.5dB, -7dB, -5.6dB, -8.1dB, -10.1dB, -8.5dB
Base Product Number:
ANT-LTE
ECCN:
7A994

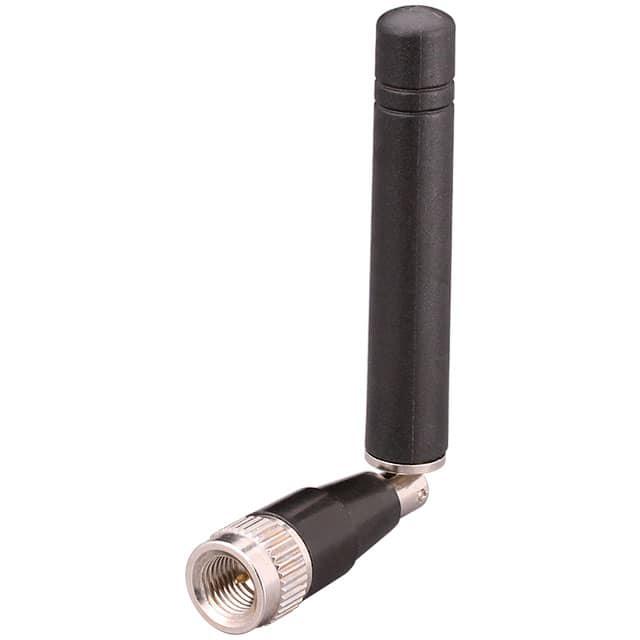

This is manufactured by Linx Technologies Inc.. The manufacturer part number is ANT-LTE-MON-SMA-L. The frequency range includes 617mhz ~ 698mhz, 698mhz ~ 803mhz, 791mhz ~ 960mhz, 1.71ghz ~ 2.2ghz, 2.3ghz ~ 2.4ghz, 2.5ghz ~ 2.7ghz, 3.3ghz ~ 3.8ghz. It is assigned with possible HTSUS value of 8529.10.9100. The product is rohs compliant. The product boasts a wide band frequency group. Additionally, the 3.100" (78.74mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in 4g, cat-m1, cbrs, cellular, gsm, lte, lte-m, nb-iot, lpwa, umts. The 3.4dbi, 4.8dbi, 5dbi, 3.9dbi, 3.4dbi, 4.1dbi, 4.6dbi is the gain value of a bespoke product. It contains 7 bands. It is shipped in bag package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes cellular, general ism. While it has a frequency of 600mhz, 700mhz, 800mhz, 850mhz, 900mhz, 1.7ghz, 1.8ghz, 1.9ghz, 2.1ghz, 2.3ghz, 2.5ghz, 3.3ghz, 3.5ghz, 3.7ghz at center/band. The product features sma male termination style. It has a long 13 weeks standard lead time. The product is available in connector mount configuration. It is a whip, tilt/swivel antenna. The product mon, is a highly preferred choice for users. The maximum power of the product is 10 w. VSWR Information: 3.3, 2.2, 2.6, 3.2, 2.3, 1.9, 2.2. It has a return loss of -5.3db, -8.5db, -7db, -5.6db, -8.1db, -10.1db, -8.5db. Moreover, it corresponds to ant-lte, a base product number of the product. The product is designated with the 7a994 code number.
