Frequency Range:
699MHz ~ 756MHz, 824MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 2.5GHz ~ 2.17GHz 2.69GHz
HTSUS:
8517.71.0000
RoHS Status:
ROHS3 Compliant
Frequency Group:
Wide Band
Height (Max):
2.835" (72.00mm)
REACH Status:
REACH Unaffected
Applications:
DCS, GSM, LTE, PCS, UMTS
Gain:
7.2dBi, 7.1dBi, 7dBi, 7.1dBi, 7dBi, 7.1dBi
Number of Bands:
6
Package:
Box
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular, General ISM
Frequency (Center/Band):
727.5MHz, 892MHz, 1.795GHz, 1.92GHz, 1.94GHz, 2.595GHz
Termination:
Mini-DIN Female
standardLeadTime:
11 Weeks
Ingress Protection:
IP54
Features:
Cable - 300mm
Mounting Type:
Panel Mount
Antenna Type:
Module
Series:
-
Power - Max:
50 W
VSWR:
-
Return Loss:
-17dB, -20dB, -21dB, -22dB, -23dB
ECCN:
EAR99

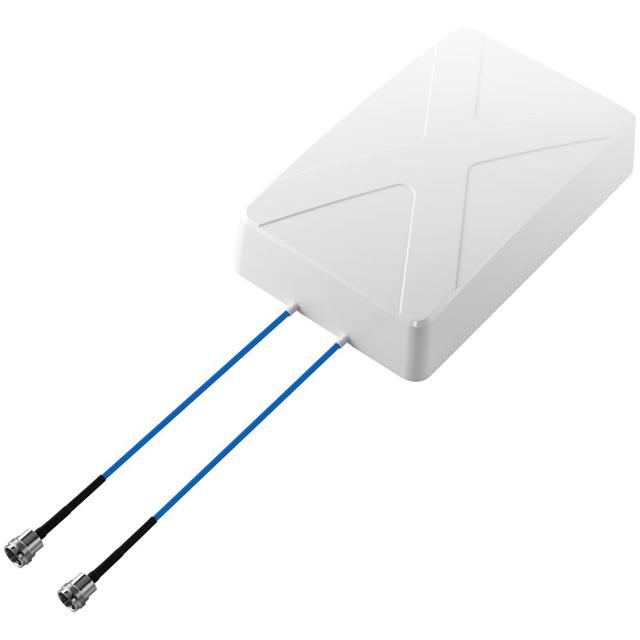

This is manufactured by Taoglas Limited. The manufacturer part number is IDAS.W.001. The frequency range includes 699mhz ~ 756mhz, 824mhz ~ 960mhz, 1.71ghz ~ 1.88ghz, 1.85ghz ~ 1.99ghz, 2.5ghz ~ 2.17ghz 2.69ghz. It is assigned with possible HTSUS value of 8517.71.0000. The product is rohs3 compliant. The product boasts a wide band frequency group. Additionally, the 2.835" (72.00mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in dcs, gsm, lte, pcs, umts. The 7.2dbi, 7.1dbi, 7dbi, 7.1dbi, 7dbi, 7.1dbi is the gain value of a bespoke product. It contains 6 bands. It is shipped in box package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes cellular, general ism. While it has a frequency of 727.5mhz, 892mhz, 1.795ghz, 1.92ghz, 1.94ghz, 2.595ghz at center/band. The product features mini-din female termination style. It has a long 11 weeks standard lead time. It is IP rated with ip54. The splendid features of the product include cable - 300mm. The product is available in panel mount configuration. It is a module antenna. The maximum power of the product is 50 w. It has a return loss of -17db, -20db, -21db, -22db, -23db. The product is designated with the ear99 code number.
