Frequency Range:
698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz
HTSUS:
8517.71.0000
RoHS Status:
RoHS Compliant
Frequency Group:
Wide Band
Height (Max):
0.130" (3.30mm)
REACH Status:
REACH Unaffected
Applications:
3G, 4G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, IMT, LTE, PCS, UMTS, WCDMA
Gain:
0.4dBi, 1.6dBi, 2.1dBi, 3.5dBi, 3.6dBi
Number of Bands:
4
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular
Frequency (Center/Band):
829MHz, 1.94GHz, 2.35GHz, 2.595GHz
Termination:
Solder
standardLeadTime:
8 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount
Antenna Type:
PCB Trace
Series:
Inversa
VSWR:
2.5, 2.8, 3.5, 3.7
Return Loss:
-4.9dB, -5.1dB, -6dB, -6.6dB, -7dB
Base Product Number:
SR4L034
ECCN:
EAR99

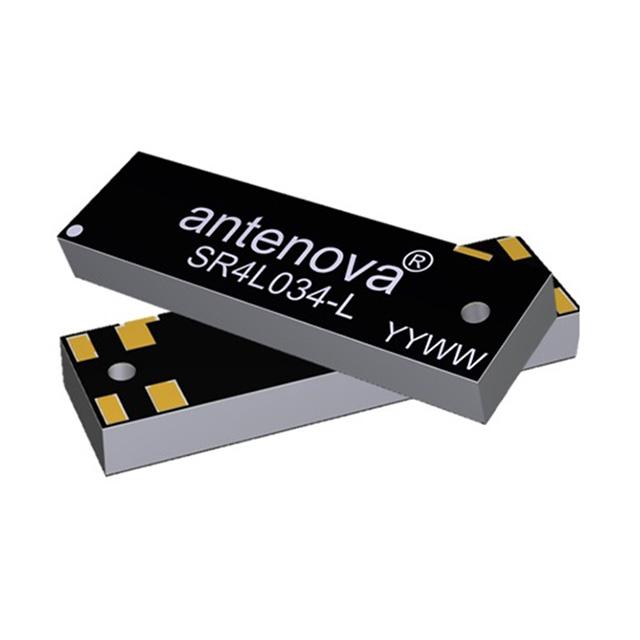

This is manufactured by Antenova. The manufacturer part number is SR4L034-L. The frequency range includes 698mhz ~ 798mhz, 824mhz ~ 960mhz, 1.71ghz ~ 2.17ghz, 2.3ghz ~ 2.4ghz, 2.5ghz ~ 2.69ghz. It is assigned with possible HTSUS value of 8517.71.0000. The product is rohs compliant. The product boasts a wide band frequency group. Additionally, the 0.130" (3.30mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in 3g, 4g, cdma, dcs, edge, gprs, gsm, hspa, imt, lte, pcs, umts, wcdma. The 0.4dbi, 1.6dbi, 2.1dbi, 3.5dbi, 3.6dbi is the gain value of a bespoke product. It contains 4 bands. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes cellular. While it has a frequency of 829mhz, 1.94ghz, 2.35ghz, 2.595ghz at center/band. The product features solder termination style. It has a long 8 weeks standard lead time. The product is available in surface mount configuration. It is a pcb trace antenna. The product inversa, is a highly preferred choice for users. VSWR Information: 2.5, 2.8, 3.5, 3.7. It has a return loss of -4.9db, -5.1db, -6db, -6.6db, -7db. Moreover, it corresponds to sr4l034, a base product number of the product. The product is designated with the ear99 code number.
