Frequency Range:
698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 2.4GHz ~ 5.8GHz
HTSUS:
8529.10.9100
RoHS Status:
ROHS3 Compliant
Frequency Group:
Wide Band
Height (Max):
2.835" (72.00mm)
REACH Status:
REACH Unaffected
Applications:
2G, 3G, 4G, Beidou, Galileo, GLONASS, GPS, LTE, Wi-Fi
Gain:
-3.11dBi, -3.16dBi, -4.69dBi, 1.45dBi, 1.92dBi, 2.88dBi, 3.1dBi, 3.32dBi, 3.52dBi, 4.36dBi, 5.62dBi, 7.22dBi
Number of Bands:
15
Package:
Tray
Moisture Sensitivity Level (MSL):
Not Applicable
RF Family/Standard:
Cellular, Navigation, WiFi
Frequency (Center/Band):
1.07MHz, 98MHz, 761MHz, 859MHz, 920MHz, 1.584GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.45GHz, 2.495GHz, 5.5GHz
Termination:
SMA Male
standardLeadTime:
11 Weeks
Ingress Protection:
-
Features:
Cable - 300mm
Mounting Type:
-
Antenna Type:
Module
Series:
-
VSWR:
-
Return Loss:
-
Base Product Number:
MA1060
ECCN:
7A994

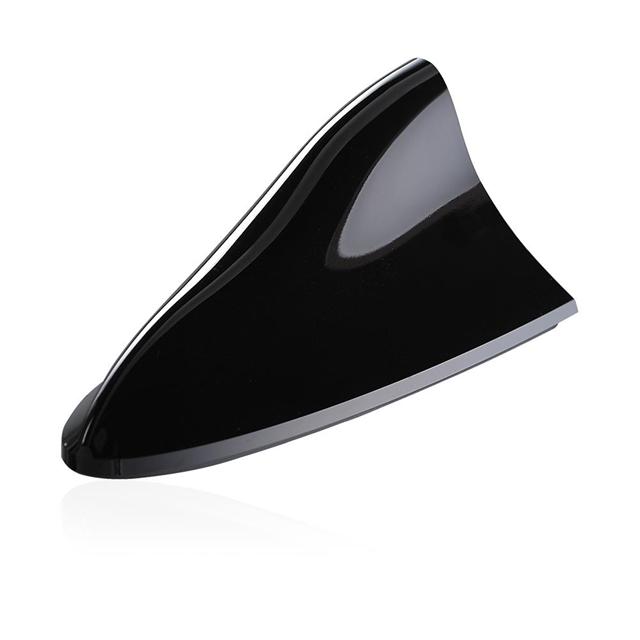

This is manufactured by Taoglas Limited. The manufacturer part number is MA1060.A.LBCT.001. The frequency range includes 698mhz ~ 960mhz, 1.71ghz ~ 2.17ghz, 2.3ghz ~ 2.7ghz, 2.4ghz ~ 5.8ghz. It is assigned with possible HTSUS value of 8529.10.9100. The product is rohs3 compliant. The product boasts a wide band frequency group. Additionally, the 2.835" (72.00mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in 2g, 3g, 4g, beidou, galileo, glonass, gps, lte, wi-fi. The -3.11dbi, -3.16dbi, -4.69dbi, 1.45dbi, 1.92dbi, 2.88dbi, 3.1dbi, 3.32dbi, 3.52dbi, 4.36dbi, 5.62dbi, 7.22dbi is the gain value of a bespoke product. It contains 15 bands. It is shipped in tray package . Its typical moisture sensitivity level is not applicable. The standard RF Family of the product includes cellular, navigation, wifi. While it has a frequency of 1.07mhz, 98mhz, 761mhz, 859mhz, 920mhz, 1.584ghz, 1.602ghz, 1.795ghz, 1.92ghz, 2.045ghz, 2.45ghz, 2.495ghz, 5.5ghz at center/band. The product features sma male termination style. It has a long 11 weeks standard lead time. The splendid features of the product include cable - 300mm. It is a module antenna. Moreover, it corresponds to ma1060, a base product number of the product. The product is designated with the 7a994 code number.
