Frequency Range:
850MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.483GHz, 5GHz ~ 5.825GHz
HTSUS:
8517.71.0000
RoHS Status:
ROHS3 Compliant
Frequency Group:
Wide Band
Height (Max):
1.122" (28.50mm)
REACH Status:
REACH Unaffected
Applications:
CDMA, EVDO, GPRS, GSM, HSPA, UMTS, WCDMA, Wi-Fi
Gain:
1.0dBi, 1.5dBi, 0.4dBi, -0.5dBi, -1.1dBi, 2.1dBi, -3.2dBi
Number of Bands:
7
Package:
Bag
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular, WiFi
Frequency (Center/Band):
850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 5GHz
Termination:
SMA Male, RP-SMA Male (2)
standardLeadTime:
11 Weeks
Ingress Protection:
IP67, IP69K
Features:
Cable - 2m
Mounting Type:
Panel Mount
Antenna Type:
Dome
Series:
Hercules
Power - Max:
10 W
VSWR:
-
Return Loss:
-8.1dB, -8.5dB, -16.5dB, -20.3dB, -19.5dB, -18.0dB, -15.0dB
Base Product Number:
MA520
ECCN:
EAR99

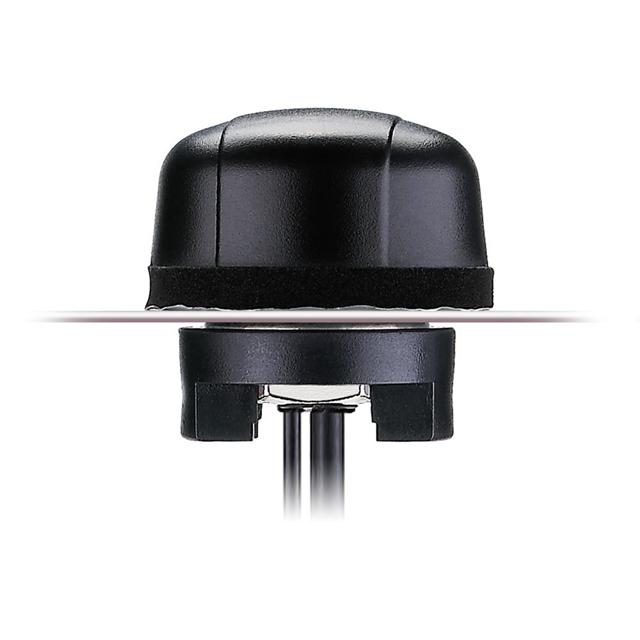

This is manufactured by Taoglas Limited. The manufacturer part number is MA520.A.BC.008. The frequency range includes 850mhz ~ 960mhz, 1.71ghz ~ 2.17ghz, 2.4ghz ~ 2.483ghz, 5ghz ~ 5.825ghz. It is assigned with possible HTSUS value of 8517.71.0000. The product is rohs3 compliant. The product boasts a wide band frequency group. Additionally, the 1.122" (28.50mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in cdma, evdo, gprs, gsm, hspa, umts, wcdma, wi-fi. The 1.0dbi, 1.5dbi, 0.4dbi, -0.5dbi, -1.1dbi, 2.1dbi, -3.2dbi is the gain value of a bespoke product. It contains 7 bands. It is shipped in bag package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes cellular, wifi. While it has a frequency of 850mhz, 900mhz, 1.8ghz, 1.9ghz, 2.1ghz, 2.4ghz, 5ghz at center/band. The product features sma male, rp-sma male (2) termination style. It has a long 11 weeks standard lead time. It is IP rated with ip67, ip69k. The splendid features of the product include cable - 2m. The product is available in panel mount configuration. It is a dome antenna. The product hercules, is a highly preferred choice for users. The maximum power of the product is 10 w. It has a return loss of -8.1db, -8.5db, -16.5db, -20.3db, -19.5db, -18.0db, -15.0db. Moreover, it corresponds to ma520, a base product number of the product. The product is designated with the ear99 code number.
