Frequency Range:
698MHz ~ 896MHz, 1.575GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 3.41GHz ~ 3.49GHz
HTSUS:
8529.10.9100
RoHS Status:
ROHS3 Compliant
Frequency Group:
Wide Band
Height (Max):
0.500" (12.70mm)
REACH Status:
REACH Unaffected
Applications:
GLONASS, GPS, LTE
Gain:
3.11dBi, 0.98dBi, 0.99dBi, 1.67dBi, 0.37dBi, 2.46dBi, 2.52dBi, 2.33dBi, 3.78dBi, 3.56dBi
Number of Bands:
10
Package:
Bag
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular, Navigation
Frequency (Center/Band):
700MHz, 850MHz, 900MHz, 1.575HGz, 1.602GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.5GHz, 3.5GHz
Termination:
SMA Male (2)
standardLeadTime:
11 Weeks
Ingress Protection:
IP67
Features:
Cable - 3m, LNA
Mounting Type:
Adhesive
Antenna Type:
Flat Bar
Series:
Genesis
VSWR:
1.5
Return Loss:
-10dB
Base Product Number:
MA240
ECCN:
7A994

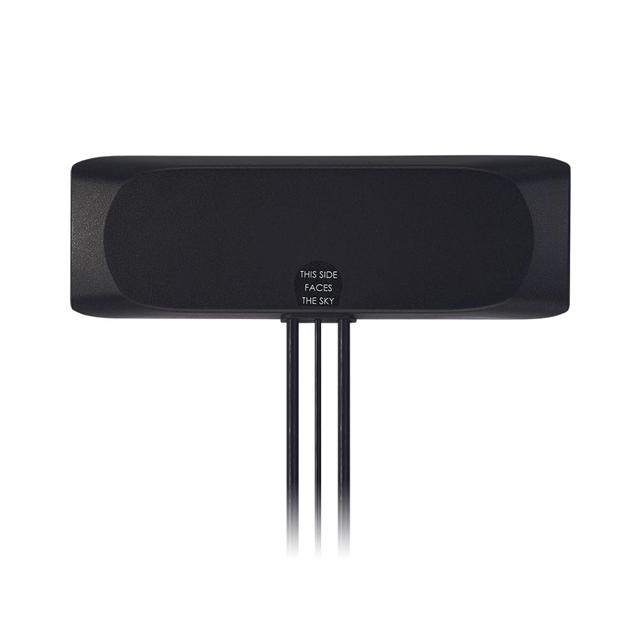

This is manufactured by Taoglas Limited. The manufacturer part number is MA240.LBI.001. The frequency range includes 698mhz ~ 896mhz, 1.575ghz ~ 1.61ghz, 1.71ghz ~ 2.17ghz, 2.49ghz ~ 2.69ghz, 3.41ghz ~ 3.49ghz. It is assigned with possible HTSUS value of 8529.10.9100. The product is rohs3 compliant. The product boasts a wide band frequency group. Additionally, the 0.500" (12.70mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in glonass, gps, lte. The 3.11dbi, 0.98dbi, 0.99dbi, 1.67dbi, 0.37dbi, 2.46dbi, 2.52dbi, 2.33dbi, 3.78dbi, 3.56dbi is the gain value of a bespoke product. It contains 10 bands. It is shipped in bag package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes cellular, navigation. While it has a frequency of 700mhz, 850mhz, 900mhz, 1.575hgz, 1.602ghz, 1.8ghz, 1.9ghz, 2.1ghz, 2.5ghz, 3.5ghz at center/band. The product features sma male (2) termination style. It has a long 11 weeks standard lead time. It is IP rated with ip67. The splendid features of the product include cable - 3m, lna. The product is available in adhesive configuration. It is a flat bar antenna. The product genesis, is a highly preferred choice for users. VSWR Information: 1.5. It has a return loss of -10db. Moreover, it corresponds to ma240, a base product number of the product. The product is designated with the 7a994 code number.
