Frequency Range:
-
HTSUS:
8517.71.0000
RoHS Status:
ROHS3 Compliant
Frequency Group:
UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz)
Height (Max):
0.031" (0.80mm)
REACH Status:
REACH Unaffected
Applications:
CDMA, GSM, UMTS
Gain:
0.01dBi, 1.2dBi, 2.66dBi, 1.25dBi, 1.43dBi
Number of Bands:
5
Package:
Bag
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular
Frequency (Center/Band):
850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz
Termination:
MMCX Male
standardLeadTime:
12 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Adhesive
Antenna Type:
Flat Patch
Series:
TheStripe™
VSWR:
1.58, 1.78, 1.51, 1.38, 1.37
Return Loss:
-13dB, -11dB, -14dB, -16dB, -16dB
Base Product Number:
PC29.09
ECCN:
EAR99

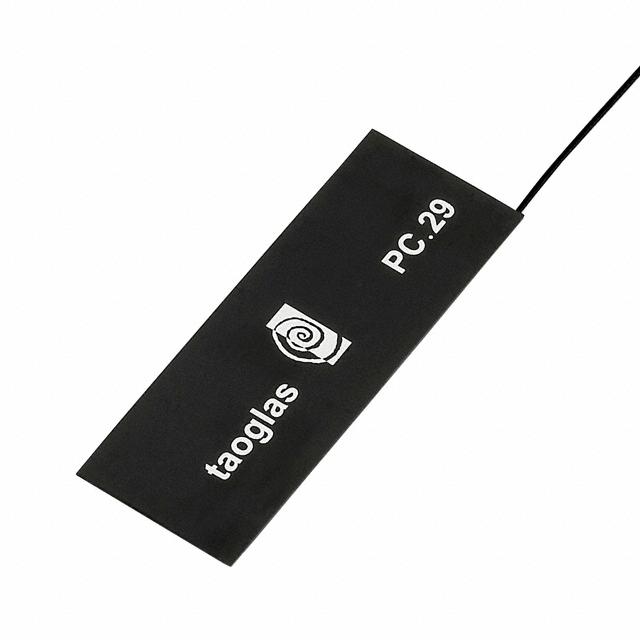

This is manufactured by Taoglas Limited. The manufacturer part number is PC29.09.0100A. It is assigned with possible HTSUS value of 8517.71.0000. The product is rohs3 compliant. The product boasts a uhf (300mhz ~ 1ghz), uhf (1ghz ~ 2ghz) frequency group. Additionally, the 0.031" (0.80mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in cdma, gsm, umts. The 0.01dbi, 1.2dbi, 2.66dbi, 1.25dbi, 1.43dbi is the gain value of a bespoke product. It contains 5 bands. It is shipped in bag package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes cellular. While it has a frequency of 850mhz, 900mhz, 1.8ghz, 1.9ghz, 2.1ghz at center/band. The product features mmcx male termination style. It has a long 12 weeks standard lead time. The product is available in adhesive configuration. It is a flat patch antenna. The product thestripe™, is a highly preferred choice for users. VSWR Information: 1.58, 1.78, 1.51, 1.38, 1.37. It has a return loss of -13db, -11db, -14db, -16db, -16db. Moreover, it corresponds to pc29.09, a base product number of the product. The product is designated with the ear99 code number.
