Frequency Range:
824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
HTSUS:
8517.71.0000
RoHS Status:
ROHS3 Compliant
Frequency Group:
Wide Band
Height (Max):
0.118" (3.00mm)
REACH Status:
REACH Unaffected
edacadModel:
PCS.07.A Models
Applications:
CDMA, DCS, EDGE, GPRS, GSM, HSDPA, PCS, UMTS, WCDMA
Gain:
-1.96dBi, 1.77dBi, 2.9dBi, 2.83dBi, 2.57dBi
edacadModelUrl:
/en/models/4250303
Number of Bands:
5
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
3 (168 Hours)
RF Family/Standard:
Cellular
Frequency (Center/Band):
850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz
Termination:
Solder
standardLeadTime:
11 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount
Antenna Type:
Chip
Series:
Nemesis
VSWR:
-
Return Loss:
-3dB, -4dB, -5dB, -7dB, -6dB
Base Product Number:
PCS.07
ECCN:
EAR99

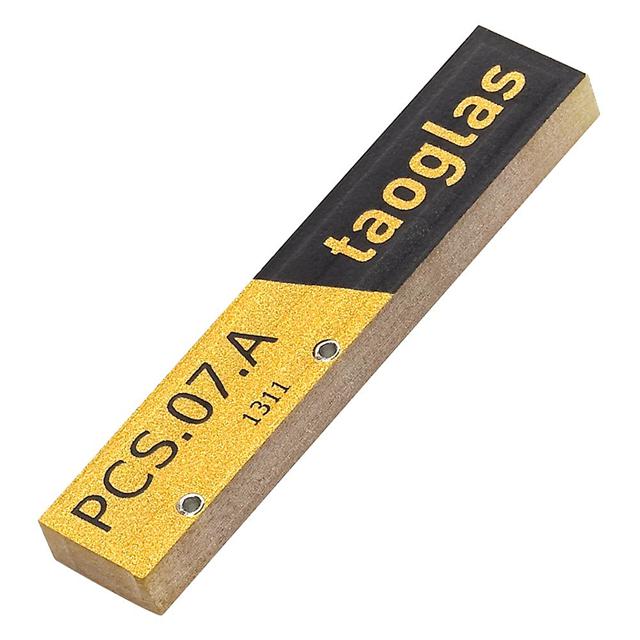

This is manufactured by Taoglas Limited. The manufacturer part number is PCS.07.A. The frequency range includes 824mhz ~ 960mhz, 1.71ghz ~ 2.17ghz. It is assigned with possible HTSUS value of 8517.71.0000. The product is rohs3 compliant. The product boasts a wide band frequency group. Additionally, the 0.118" (3.00mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in cdma, dcs, edge, gprs, gsm, hsdpa, pcs, umts, wcdma. The -1.96dbi, 1.77dbi, 2.9dbi, 2.83dbi, 2.57dbi is the gain value of a bespoke product. It contains 5 bands. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 3 (168 hours). The standard RF Family of the product includes cellular. While it has a frequency of 850mhz, 900mhz, 1.8ghz, 1.9ghz, 2.1ghz at center/band. The product features solder termination style. It has a long 11 weeks standard lead time. The product is available in surface mount configuration. It is a chip antenna. The product nemesis, is a highly preferred choice for users. It has a return loss of -3db, -4db, -5db, -7db, -6db. Moreover, it corresponds to pcs.07, a base product number of the product. The product is designated with the ear99 code number.
