Frequency Range:
1.561GHz ~ 1.602GHz, 2.4GHz ~ 2.5GHz
HTSUS:
8529.10.9100
RoHS Status:
ROHS3 Compliant
Frequency Group:
UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz)
Height (Max):
0.059" (1.50mm)
REACH Status:
REACH Unaffected
Applications:
Beidou, Bluetooth, GLONASS, GPS, Wi-Fi
Gain:
0.5dBi, 1.5dBi, 1.5dBi, 1dBi
Number of Bands:
4
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Bluetooth, Navigation, WiFi
Frequency (Center/Band):
1.561GHz, 1.575GHz, 1.602GHz, 2.4GHz
Termination:
Solder
standardLeadTime:
15 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount
Antenna Type:
Chip
Series:
-
Power - Max:
2 W
VSWR:
-
Return Loss:
-9dB
ECCN:
EAR99

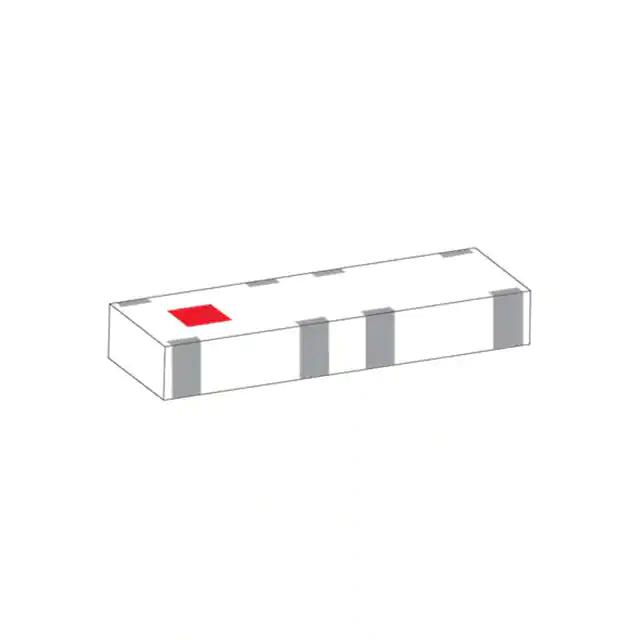

This is manufactured by Johanson Technology Inc.. The manufacturer part number is 2450AD47A1590E. The frequency range includes 1.561ghz ~ 1.602ghz, 2.4ghz ~ 2.5ghz. It is assigned with possible HTSUS value of 8529.10.9100. The product is rohs3 compliant. The product boasts a uhf (1ghz ~ 2ghz), uhf (2ghz ~ 3ghz) frequency group. Additionally, the 0.059" (1.50mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in beidou, bluetooth, glonass, gps, wi-fi. The 0.5dbi, 1.5dbi, 1.5dbi, 1dbi is the gain value of a bespoke product. It contains 4 bands. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes bluetooth, navigation, wifi. While it has a frequency of 1.561ghz, 1.575ghz, 1.602ghz, 2.4ghz at center/band. The product features solder termination style. It has a long 15 weeks standard lead time. The product is available in surface mount configuration. It is a chip antenna. The maximum power of the product is 2 w. It has a return loss of -9db. The product is designated with the ear99 code number.
