Frequency Range:
698MHz ~ 787MHz, 824MHz ~ 960MHz, 1.575GHz ~ 1.602GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.6GHz ~ 3.5GHz
HTSUS:
8517.71.0000
RoHS Status:
ROHS3 Compliant
Frequency Group:
Wide Band
Height (Max):
3.374" (85.70mm)
REACH Status:
REACH Unaffected
Applications:
CDMA, GPS, GSM, LTE, UMTS
Gain:
2.52dBi, 1.48dBi, 32dBi, 1.27dBi, 0.15dBi, 3.2dBi
Number of Bands:
6
Package:
Box
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular, Navigation
Frequency (Center/Band):
742MHz, 892MHz, 1.575GHz, 1.9GHz, 2.8GHz
Termination:
SMA Male
Ingress Protection:
IP67
Features:
-
Mounting Type:
Panel Mount
Antenna Type:
Dome
Series:
Pantheon
VSWR:
-
Return Loss:
-
Base Product Number:
MA741
ECCN:
EAR99

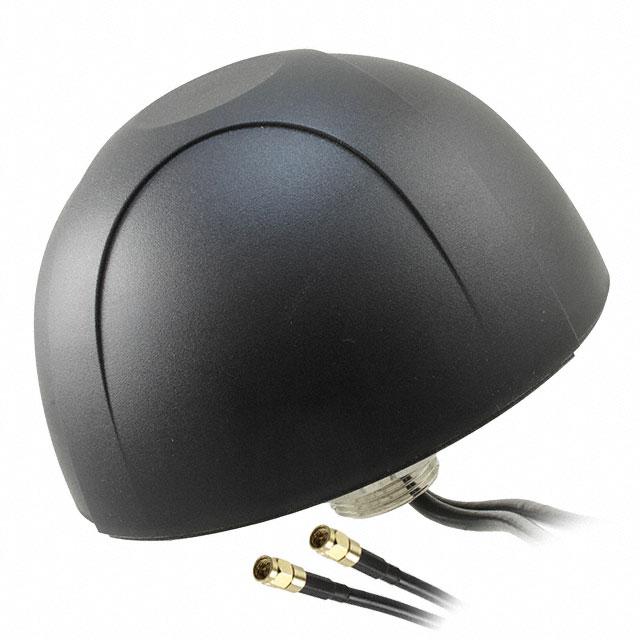

This is manufactured by Taoglas Limited. The manufacturer part number is MA741.A.BI.001. The frequency range includes 698mhz ~ 787mhz, 824mhz ~ 960mhz, 1.575ghz ~ 1.602ghz, 1.71ghz ~ 2.17ghz, 2.4ghz ~ 2.5ghz, 2.6ghz ~ 3.5ghz. It is assigned with possible HTSUS value of 8517.71.0000. The product is rohs3 compliant. The product boasts a wide band frequency group. Additionally, the 3.374" (85.70mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in cdma, gps, gsm, lte, umts. The 2.52dbi, 1.48dbi, 32dbi, 1.27dbi, 0.15dbi, 3.2dbi is the gain value of a bespoke product. It contains 6 bands. It is shipped in box package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes cellular, navigation. While it has a frequency of 742mhz, 892mhz, 1.575ghz, 1.9ghz, 2.8ghz at center/band. The product features sma male termination style. It is IP rated with ip67. The product is available in panel mount configuration. It is a dome antenna. The product pantheon, is a highly preferred choice for users. Moreover, it corresponds to ma741, a base product number of the product. The product is designated with the ear99 code number.
