Frequency Range:
698MHz ~ 800MHz, 824MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.7GHz
HTSUS:
8529.10.9100
RoHS Status:
ROHS3 Compliant
Frequency Group:
Wide Band
Height (Max):
3.343" (84.90mm)
REACH Status:
REACH Unaffected
Applications:
CDMA, DCS, EDGE, GPRS, GPS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA, Wi-Fi
Gain:
-1.7dBi, -0.9dBi, 0.8dBi, 1.3dBi, 1.3dBi, 1.7dBi, 3.5dBi
Number of Bands:
8
Package:
Bag
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular, Navigation, WiFi
Frequency (Center/Band):
700MHz, 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.5GHz
Termination:
NMO Male
standardLeadTime:
11 Weeks
Ingress Protection:
IP67, IP69K
Features:
-
Mounting Type:
Base Mount
Antenna Type:
Dome
Series:
Shockwave
VSWR:
-
Return Loss:
-
Base Product Number:
TL.10.1
ECCN:
7A994

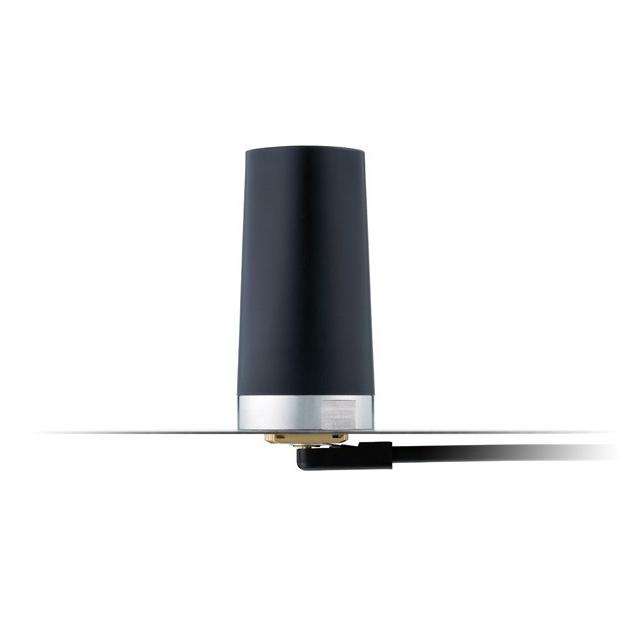

This is manufactured by Taoglas Limited. The manufacturer part number is TL.10.1HH11. The frequency range includes 698mhz ~ 800mhz, 824mhz ~ 960mhz, 1.575ghz, 1.71ghz ~ 2.17ghz, 2.4ghz ~ 2.7ghz. It is assigned with possible HTSUS value of 8529.10.9100. The product is rohs3 compliant. The product boasts a wide band frequency group. Additionally, the 3.343" (84.90mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in cdma, dcs, edge, gprs, gps, gsm, hsdpa, lte, pcs, umts, wcdma, wi-fi. The -1.7dbi, -0.9dbi, 0.8dbi, 1.3dbi, 1.3dbi, 1.7dbi, 3.5dbi is the gain value of a bespoke product. It contains 8 bands. It is shipped in bag package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes cellular, navigation, wifi. While it has a frequency of 700mhz, 850mhz, 900mhz, 1.575ghz, 1.8ghz, 1.9ghz, 2.1ghz, 2.5ghz at center/band. The product features nmo male termination style. It has a long 11 weeks standard lead time. It is IP rated with ip67, ip69k. The product is available in base mount configuration. It is a dome antenna. The product shockwave, is a highly preferred choice for users. Moreover, it corresponds to tl.10.1, a base product number of the product. The product is designated with the 7a994 code number.
