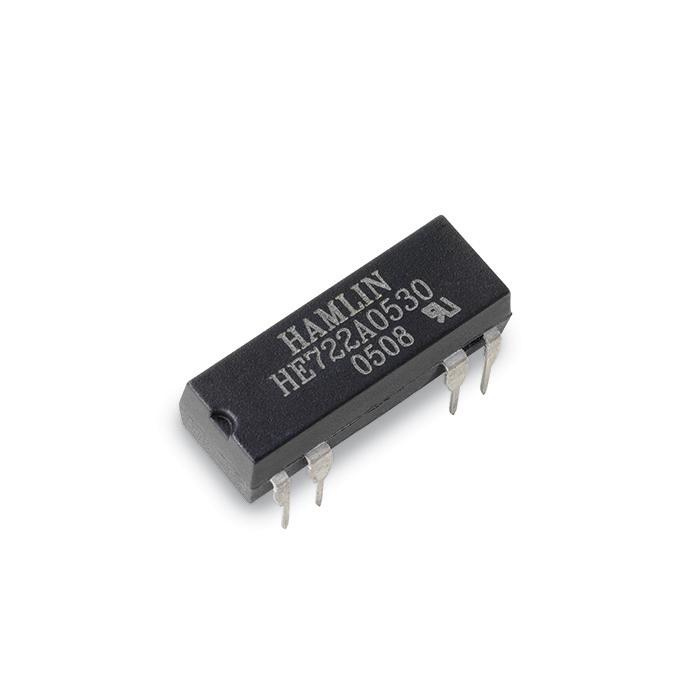

SPDT Reed Relay, 5V dc
Product Information
Contact Resistance:
200 mΩ
Dimensions:
19.05 x 7.22 x 5.5mm
Coil Voltage:
5V dc
Coil Resistance:
200Ω
Standards Met:
cULus E47258 Recognized
Maximum Switching Voltage DC:
175V
Maximum Switching Power DC:
5 W
Isolation Coil To Contact:
500V ac
Maximum Operating Temperature:
+85°C
Terminal Type:
PCB Pin
Operating Temperature Range:
-40 → +85°C
Contact Configuration:
SPDT
Length:
19.05mm
Special Features:
Diode Suppression Option, External Magnetic Shield Option, Optional Coil Suppression Diode → Protect Coil Drive Circuits
Mounting Type:
PCB Mount
Operating Time Including Bounce:
3ms
Depth:
7.22mm
Height:
5.5mm
Maximum Switching Current DC:
250 mA
Minimum Operating Temperature:
-40°C
Number of Poles:
1
Checking for live stock
FAQs
Yes. You can also search HE721C0510 on website for other similar products.
We accept all major payment methods for all products including ET21474257. Please check your shopping cart at the time of order.
You can order Wickmann brand products with HE721C0510 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Reed Relays category are shipped in lowest possible time.
You will get a confirmation email regarding your order of SPDT Reed Relay, 5V dc. You can also check on our website or by contacting our customer support team for further order details on SPDT Reed Relay, 5V dc.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET21474257 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Wickmann" products on our website by using Enrgtech's Unique Manufacturing Part Number ET21474257.
Yes. We ship HE721C0510 Internationally to many countries around the world.
This is SPDT Reed Relay 5V dc manufactured by Wickmann. The manufacturer part number is HE721C0510. It features a 200 mω contact resistance. The given dimensions of the product include 19.05 x 7.22 x 5.5mm. The coil voltage of the product is 5v dc. It holds up to 200ω coil resistance. The product complies with all safety standards, such as culus e47258 recognized. While it carries 175v of maximum DC switching voltage. It bears a maximum 5 w of DC switching power. The product has 500v ac isolation coil to contact. It has a maximum operating temperature of +85°c. The terminal is a pcb pin type. The product has -40 → +85°c of operating temperature range. The contact is equipped with spdt configuration. Its accurate length is 19.05mm. The product also provides special features, such as diode suppression option, external magnetic shield option, optional coil suppression diode → protect coil drive circuits. The product is available in pcb mount configuration. Moreover, the product offers a 3ms operating time including bounce . The product comes in 7.22mm depth. In addition, the height is 5.5mm. It has a minimum 250 ma DC switching current . Whereas, the minimum operating temperature of the product is -40°c. It has equipped with 1 poles.
