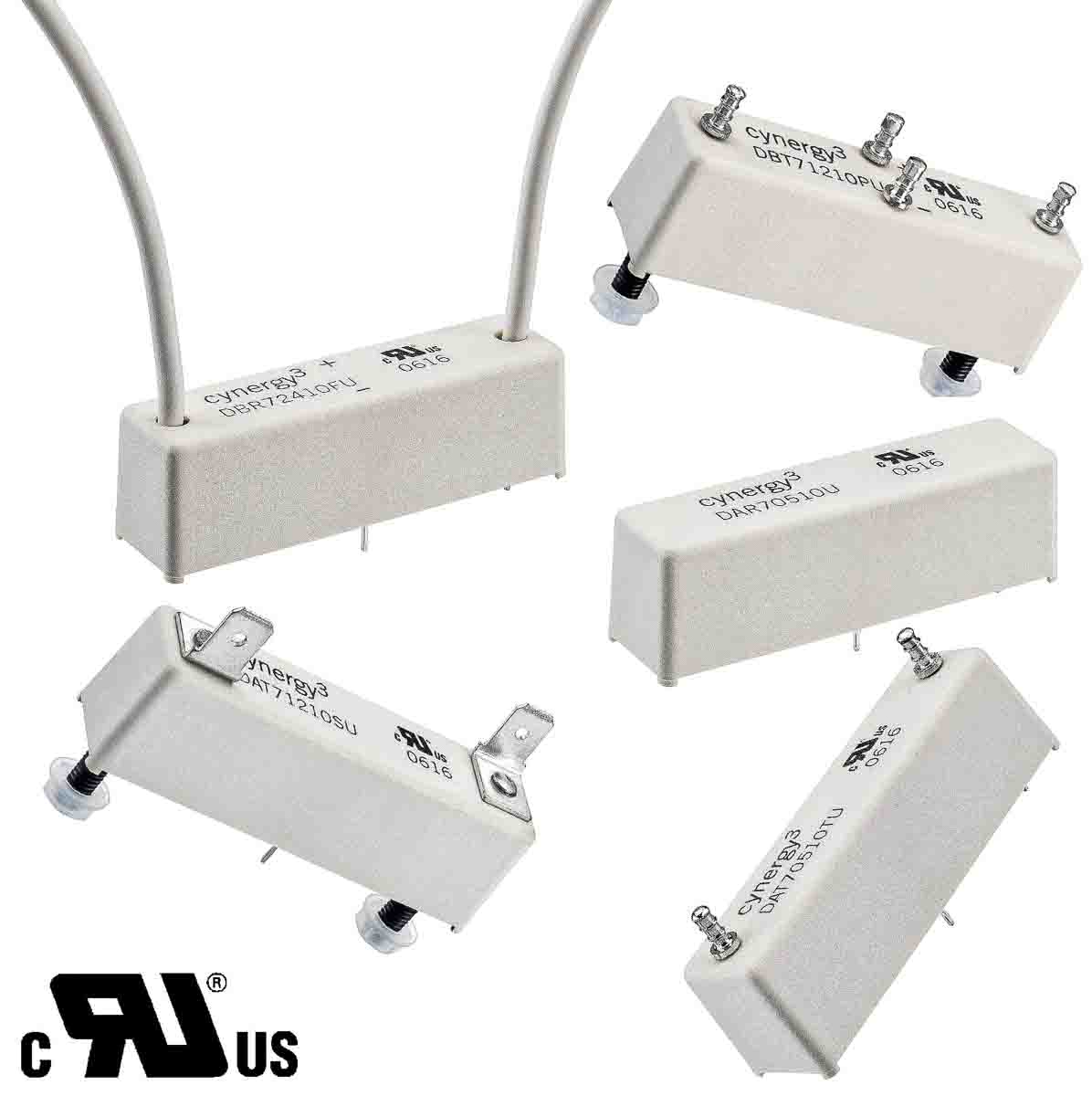

Sensata-Cynergy3 DBR72475U
Product Information
Contact Resistance:
50 mΩ
Dimensions:
60 x 15.8 x 18.5mm
Electrical Life:
10^6 (50W Switching) cycles, 10^9 (Dry Switching) cycles
Coil Resistance:
925Ω
Life:
10^6 (50W Switching) cycles, 10^9 (Dry Switching) cycles
Standards Met:
UL Approved
Maximum Switching Voltage DC:
1000V
Maximum Switching Power DC:
50 W
Isolation Coil To Contact:
17kV
Maximum Operating Temperature:
+70°C
Terminal Type:
PCB Pin
Maximum Switching Current AC:
3 A
Coil Voltage:
24V dc
Operating Temperature Range:
-20 → +70°C
Depth:
15.8mm
Relay Switching Classification:
General Purpose Relay
Special Features:
7.5kV or 5kV Isolation, Choice of 10kV, Excellent AC Characteristics, Low Contact Resistance, PCB or Panel mΩunt
Mounting Type:
PCB Mount
Operating Time Including Bounce:
2ms
Length:
60mm
Height:
18.5mm
Maximum Switching Current DC:
3 A
Maximum Switching Voltage AC:
1000V
Minimum Operating Temperature:
-20°C
Number of Poles:
1
Contact Material:
Rhodium
HTSUS:
8536.41.0030
RoHS Status:
ROHS3 Compliant
Coil Voltage:
24VDC
Termination Style:
PC Pin
REACH Status:
REACH Unaffected
Operating Temperature:
-20°C ~ 70°C
Coil Resistance:
925 Ohms
Coil Current:
25.9 mA
Coil Type:
Non Latching
Switching Voltage:
1000VAC, 1000VDC - Max
Seal Rating:
-
Must Operate Voltage:
20 VDC
Package:
Bulk
Contact Form:
SPST-NC (1 Form B)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
2 ms
Must Release Voltage:
4 VDC
standardLeadTime:
12 Weeks
Contact Rating (Current):
3 A
Features:
-
Mounting Type:
Through Hole
Series:
DB
Release Time:
3 ms
ECCN:
EAR99
Base Product Number:
DBR72475
Contact Material:
Rhodium (Rh)
Checking for live stock
FAQs
Yes. You can also search DBR72475U on website for other similar products.
We accept all major payment methods for all products including ET20639531. Please check your shopping cart at the time of order.
You can order Sensata-Cynergy3 brand products with DBR72475U directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Reed Relays category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Sensata-Cynergy3 DBR72475U. You can also check on our website or by contacting our customer support team for further order details on Sensata-Cynergy3 DBR72475U.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET20639531 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Sensata-Cynergy3" products on our website by using Enrgtech's Unique Manufacturing Part Number ET20639531.
Yes. We ship DBR72475U Internationally to many countries around the world.
This is manufactured by Sensata-Cynergy3. The manufacturer part number is DBR72475U. It features a 50 mω contact resistance. The given dimensions of the product include 60 x 15.8 x 18.5mm. The product offers long-lasting services of 10^6 (50w switching) cycles, 10^9 (dry switching) cycles. It holds up to 925ω coil resistance. It is capable of doing 10^6 (50w switching) cycles, 10^9 (dry switching) cycles in a lifetime . The product complies with all safety standards, such as ul approved. While it carries 1000v of maximum DC switching voltage. It bears a maximum 50 w of DC switching power. The product has 17kv isolation coil to contact. It has a maximum operating temperature of +70°c. The terminal is a pcb pin type. It has a maximum 3 a switching current AC . The coil voltage of the product is 24v dc. The product has -20 → +70°c of operating temperature range. The product comes in 15.8mm depth. It has a general purpose relay switching relay configuration . The product also provides special features, such as 7.5kv or 5kv isolation, choice of 10kv, excellent ac characteristics, low contact resistance, pcb or panel mωunt. The product is available in pcb mount configuration. Moreover, the product offers a 2ms operating time including bounce . Its accurate length is 60mm. In addition, the height is 18.5mm. It has a minimum 3 a DC switching current . It has a maximum AC switching voltage of 1000v. Whereas, the minimum operating temperature of the product is -20°c. It has equipped with 1 poles. The product is made from sturdy rhodium materials. It is assigned with possible HTSUS value of 8536.41.0030. The product is rohs3 compliant. The coil voltage of the product is 24vdc. Moreover, it has pc pin terminal style. In addition, it is reach unaffected. The product has -20°c ~ 70°c operating temperature range. It holds up to 925 ohms coil resistance. It has a coil current of 25.9 ma. The coil is a non latching type. The product's switching voltage is 1000vac, 1000vdc - max. On the other hand, 20 vdc is the given crucial/must operating voltage. It is shipped in bulk package . It also has a spst-nc (1 form b) contact form. Its typical moisture sensitivity level is 1 (unlimited). The operating time of the product is 2 ms. While the must release voltage is a 4 vdc. It has a long 12 weeks standard lead time. It has a contact current rating of 3 a. The product is available in through hole configuration. The product db, is a highly preferred choice for users. While 3 ms is its release time. The product is designated with the ear99 code number. Moreover, it corresponds to dbr72475, a base product number of the product. The product is made from sturdy rhodium (rh) materials.
