Contact Resistance:
100 mΩ
Dimensions:
7.62 (Dia.) x 22.86mm
Coil Voltage:
24V dc
Coil Resistance:
1 kΩ
Life:
10000000 (Resistive Load) operations, 1000000000 (Dry) operations
Standards Met:
CULus Recognised, UL Approved
Maximum Switching Voltage DC:
350V
Isolation Coil To Contact:
1kV dc
Maximum Operating Temperature:
+85°C
Terminal Type:
Axial
Maximum Switching Current AC:
1 A
Operating Temperature Range:
-40 → +85°C
Contact Configuration:
SPNO
Depth:
7.62 (Dia.)mm
Relay Switching Classification:
General Purpose Relay
Special Features:
Variable Mounting Options
Mounting Type:
PCB Mount
Operating Time Including Bounce:
11ms
Length:
22.86mm
Maximum Switching Current DC:
1 A
Maximum Switching Voltage AC:
300V
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
100 VA
Number of Poles:
1
Contact Material:
Rhodium

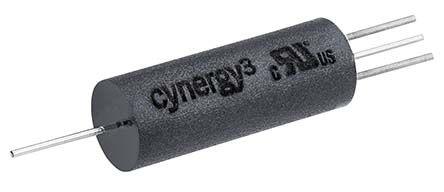

This is SPNO Reed Relay 1000 mA 24V dc manufactured by Cynergy3. The manufacturer part number is S2-24EU/RS. It features a 100 mω contact resistance. The given dimensions of the product include 7.62 (dia.) x 22.86mm. The coil voltage of the product is 24v dc. It holds up to 1 kω coil resistance. It is capable of doing 10000000 (resistive load) operations, 1000000000 (dry) operations in a lifetime . The product complies with all safety standards, such as culus recognised, ul approved. While it carries 350v of maximum DC switching voltage. The product has 1kv dc isolation coil to contact. It has a maximum operating temperature of +85°c. The terminal is a axial type. It has a maximum 1 a switching current AC . The product has -40 → +85°c of operating temperature range. The contact is equipped with spno configuration. The product comes in 7.62 (dia.)mm depth. It has a general purpose relay switching relay configuration . The product also provides special features, such as variable mounting options. The product is available in pcb mount configuration. Moreover, the product offers a 11ms operating time including bounce . Its accurate length is 22.86mm. It has a minimum 1 a DC switching current . It has a maximum AC switching voltage of 300v. Whereas, the minimum operating temperature of the product is -40°c. It also features an AC switching power of 100 va. It has equipped with 1 poles. The product is made from sturdy rhodium materials.
