TE Connectivity AMP Connectors 2314927-5
Product Information
Manufacturer Standard Lead Time:
28 Weeks
Contact Finish - Mating:
Tin
Style:
Board to Board
Detailed Description:

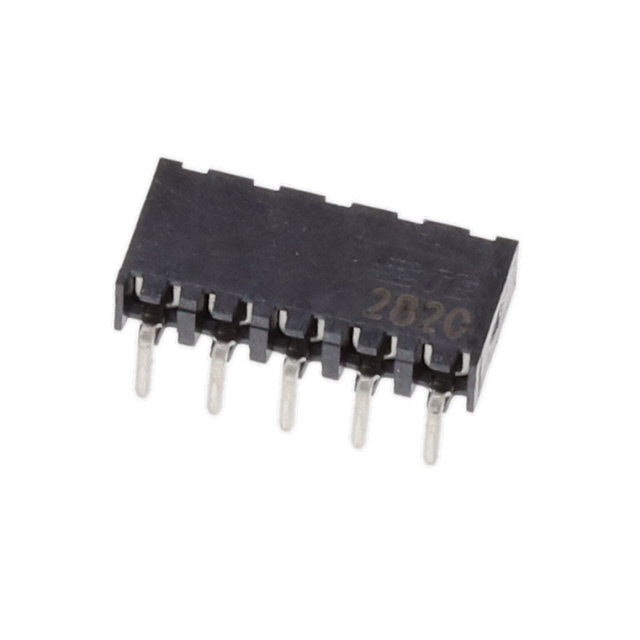

5 Position Receptacle Connector 0.079" (2.00mm) Through Hole, Right Angle Tin
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
12.0µin (0.30µm)
Number of Positions:
5
Base Part Number:
2314927
Insulation Height:
0.083" (2.10mm)
Insulation Color:
Black
Contact Length - Post:
0.083" (2.11mm)
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
Contact Shape:
Square
Manufacturer:
TE Connectivity AMP Connectors
Voltage Rating:
125V
Connector Type:
Receptacle
Number of Positions Loaded:
All
Contact Finish Thickness - Mating:
118.1µin (3.00µm)
Fastening Type:
Push-Pull
Termination:
Solder
Current Rating (Amps):
2A
Pitch - Mating:
0.079" (2.00mm)
Mounting Type:
Through Hole, Right Angle
Series:
AMPMODU
Packaging:
Bulk
Customer Reference:
Contact Type:
Female Socket
Contact Finish - Post:
Tin
Insulation Material:
Liquid Crystal Polymer (LCP)
Contact Material:
Phosphor Bronze
Checking for live stock
FAQs
Yes. You can also search 2314927-5 on website for other similar products.
We accept all major payment methods for all products including ET19313273. Please check your shopping cart at the time of order.
You can order TE Connectivity AMP Connectors brand products with 2314927-5 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Rectangular Connectors - Headers, Receptacles, Female Sockets category are shipped in lowest possible time.
You will get a confirmation email regarding your order of TE Connectivity AMP Connectors 2314927-5. You can also check on our website or by contacting our customer support team for further order details on TE Connectivity AMP Connectors 2314927-5.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET19313273 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "TE Connectivity AMP Connectors" products on our website by using Enrgtech's Unique Manufacturing Part Number ET19313273.
Yes. We ship 2314927-5 Internationally to many countries around the world.
This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 2314927-5. It has typical 28 weeks of manufacturer standard lead time. It has nice contact finishing of tin. Additionally, the product is designed with board to board Style. It features 5 position receptacle connector 0.079" (2.00mm) through hole, right angle tin. The product has -40°c ~ 105°c operating temperature range. Additionally, it features 12.0µin (0.30µm) of post thickness. The product carries possible position value of 5. Base Part Number: 2314927. 0.083" (2.10mm) of insulation height. In addition, black is the insulation color of the product. 0.083" (2.11mm) is the given possible contact length (post) values. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. The te connectivity amp connectors's product offers user-desired applications. Moreover, the product has a nominal 125v voltage rating. receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. However, 118.1µin (3.00µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is 2a. It has 0.079" (2.00mm) of pitch-mating value. The product is available in through hole, right angle configuration. The product ampmodu, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has typical contact type of female socket. It has possible tin contact post finishing. It has a robust liquid crystal polymer (lcp) insulation material. The product is made from sturdy phosphor bronze materials.
